Запчасти Case IH STX280 (05-02) - TRANSMISSION CONTROL ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION (05) - STEERING

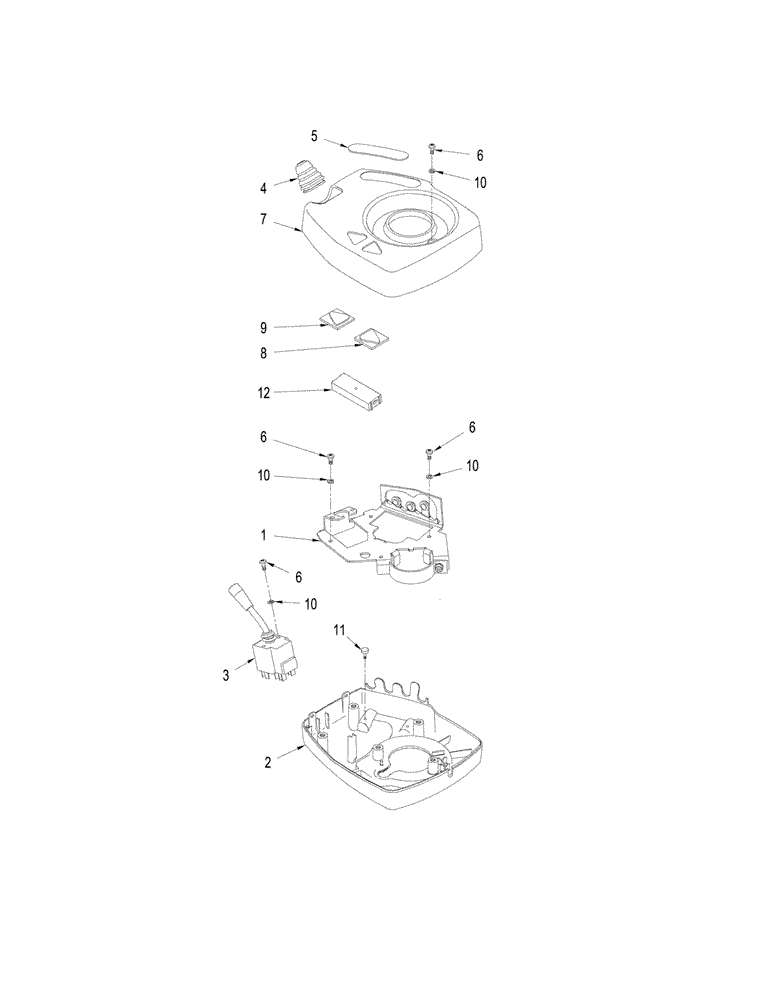

Схема запчастей Case IH STX280 - (05-02) - TRANSMISSION CONTROL ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION (05) - STEERING
3
7
9
8
5
6
4
6
10
11
10
6
10
10
6
2
12
1

Артикул

Название

Примечание

Количество

414332A1

CONTROL

Transmission, Inc. 1 - 3, 5 - 10, 12 & 13

1шт.

With Self Cancel

1шт.

1

325362A1

CHASSIS

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Lower, Transmission Control

1шт.

3

284777A1

SWITCH

Turn Signal

1шт.

With Self Cancel

1шт.

4

325068A1

BELLOWS

1шт.

5

414330A1

DECAL

Plate, FNRP

1шт.

6

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

7шт.

7

NSS

NOT SOLD SEPARAT

Housing, Upper, Transmission Control

1шт.

8

303466A1

SYMBOLS

SYMBOL RH Turn Signal

1шт.

9

303467A1

SYMBOLS

SYMBOL LH Turn Signal

1шт.

10

892-11004

LOCK WASHER,M4

7шт.

11

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

12

303465A2

LAMP,12V, 2W

Flasher

1шт.

Выбрано товаров: 15
