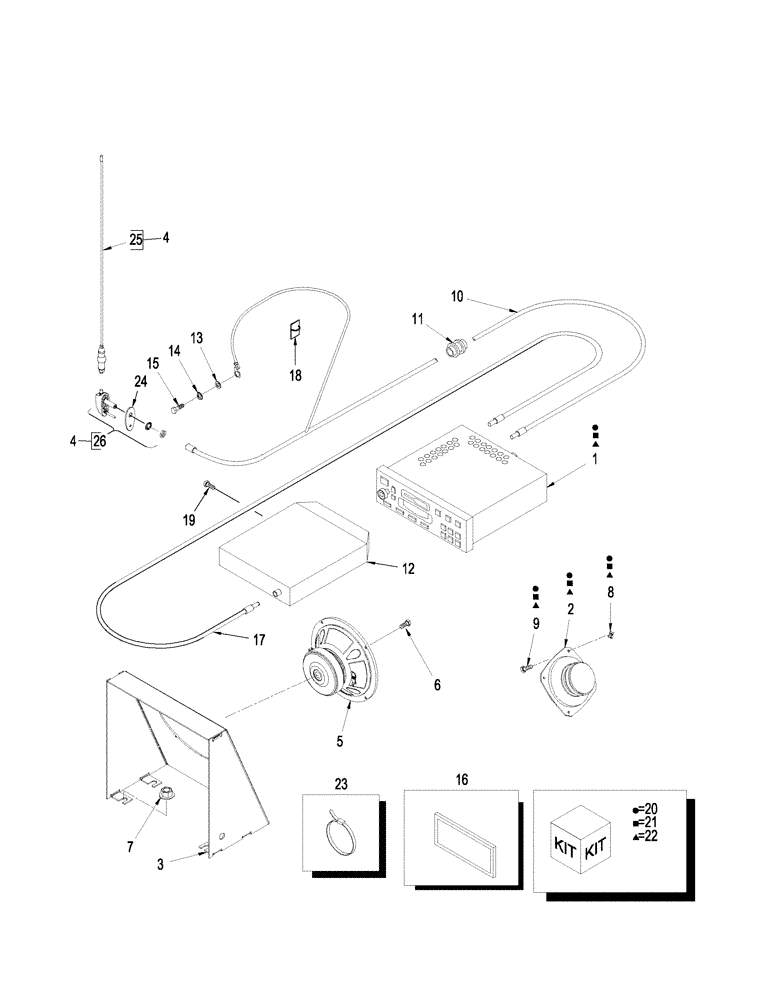

Запчасти Case IH STX280 (04-03) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

87552288

RADIO

AM / FM / WB / CD

1шт.

1

355623A2

RADIO

AM / FM / WB / Cassette

1шт.

1

325061A2

RADIO

AM/FM/WB, With Cassette Tape, CD Changer Ready

1шт.

2

258342A2

SPEAKER

Co-Axial

2шт.

3

388445A1

HOUSING

Subwoofer

1шт.

4

87471319

ANTENNA

Radio, Inc. 25 & 26

1шт.

If Replacing Antenna 360215A1 Order Antenna 87471319, As Well As, 87471321 Spacer.

1шт.

5

388444A1

SPEAKER

8", Subwoofer

1шт.

6

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

Australian Models

4шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

8

177269A1

SPRING NUT,M4.2

8шт.

9

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

8шт.

10

360432A2

HARNESS

Radio Antenna, Inc. 11

1шт.

11

NSS

NOT SOLD SEPARAT

Grommet

1шт.

12

317688A1

COMPACT DISC PLAYER

Delco, 6 Disc

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

15

779-14613

SELF-TAP SCREW,Hex Hd, M6.3 x 13

1шт.

16

1535219C1

COVER

without Radio

1шт.

17

449071A1

HARNESS

CD Player, 5486 mm (216")

1шт.

18

388489A1

CLIP,ELECTRICAL

2шт.

18

435436A1

RUBBER MOUNTING

Adhesive Backed

1шт.

19

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

20

334229A1

KIT

AM / FM / WB / Cassette / CD, Inc. 1, 2, 8, 9

1шт.

21

186158A2

KIT

AM / FM / WB, Inc. 1, 2, 8, 9

1шт.

22

719582003

KIT

Single CD Player / Radio

1шт.

23

50-2037T1

STRAP

Tie

1шт.

23

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

24

87471321

SPACER

Antenna

1шт.

25

87363131

ANTENNA

Radio

1шт.

26

87615704

ANTENNA

Antenna Radio

1шт.
