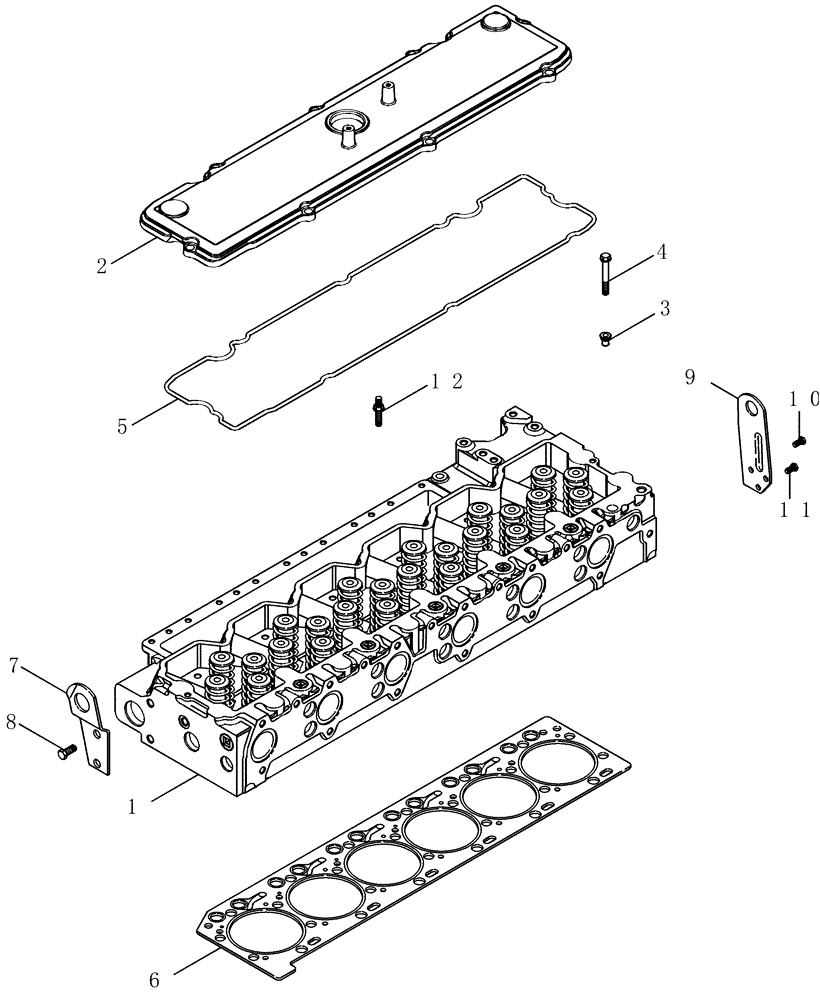

Запчасти Case IH STX280 (02-16) - CYLINDER HEAD COVER (02) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder, See Figure: 02-17

1шт.

2

87345871

VALVE COVER

1шт.

3

87342136

ISOLATOR

8шт.

4

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

7шт.

5

87345861

GASKET,3.2mm Thk

Cylinder Head Cover

1шт.

6

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

7

87340305

LIFTING EYE

Front

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

87340301

LIFTING EYE

Engine Lifting, Rear

1шт.

10

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

11

87340324

BOLT

1шт.

12

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

M8 x 35

1шт.
