Запчасти Case IH STX280 (02-15) - OIL PUMP AND OIL PAN (02) - ENGINE

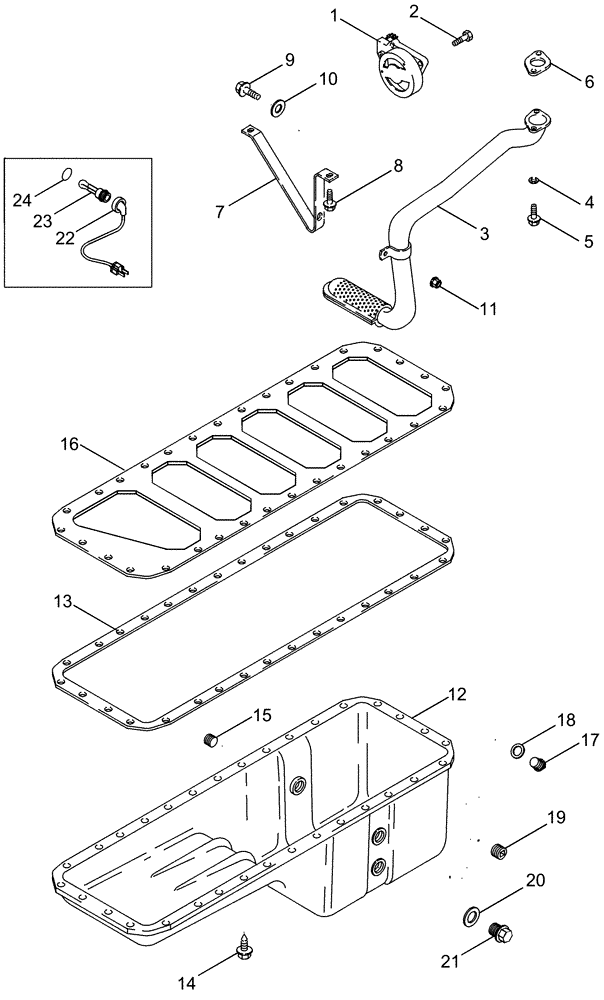

Схема запчастей Case IH STX280 - (02-15) - OIL PUMP AND OIL PAN (02) - ENGINE
4
6
9
15
8
5
21
19
7
24
18
11
3
22
13
2
20
17
16
14
1
23
12
10

Артикул

Название

Примечание

Количество

1

J991123

ENGINE OIL PUMP

1шт.

1

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

1

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J910787

TUBE

Oil Suction

1шт.

STX280

1шт.

STEIGER 280

1шт.

3

J944264

TUBE,1.25" OD

Suction, Engine Oil

1шт.

STX330

1шт.

STEIGER 330

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

87447959

GASKET,1.2mm Thk

Suction Tube, Engine Oil

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

12

87359023

ENGINE OIL PAN

1шт.

STX280

1шт.

STEIGER 280

1шт.

12

87357469

ENGINE OIL PAN

1шт.

STX330

1шт.

STEIGER 330

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Oil Pan, Order A77679

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

15

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

M22

1шт.

15a

STX330

1шт.

15b

STEIGER 330

1шт.

16

87308050

GASKET,0.95mm Thk

1шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924147

PLUG,M18 x 1.5

M18

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

21

J924148

PLUG,M22 x 1.5

M22

1шт.

A77580

SERVICE KIT

Heater, 120V, Inc. 22 and 23

1шт.

22

J906388

HEATING ELEMENT

Engine Oil

1шт.

23

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

A77666

SERVICE KIT

Heater, 240V, Inc. 22 and 23

1шт.

22

J906389

HEATING ELEMENT

Engine Oil

1шт.

23

J905114

ELECTRIC CABLE

1829 mm (72")

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

Выбрано товаров: 42
