Запчасти Case IH STX280 (08-39) - HYDRAULICS - TWIN FLOW CIRCUITRY (08) - HYDRAULICS

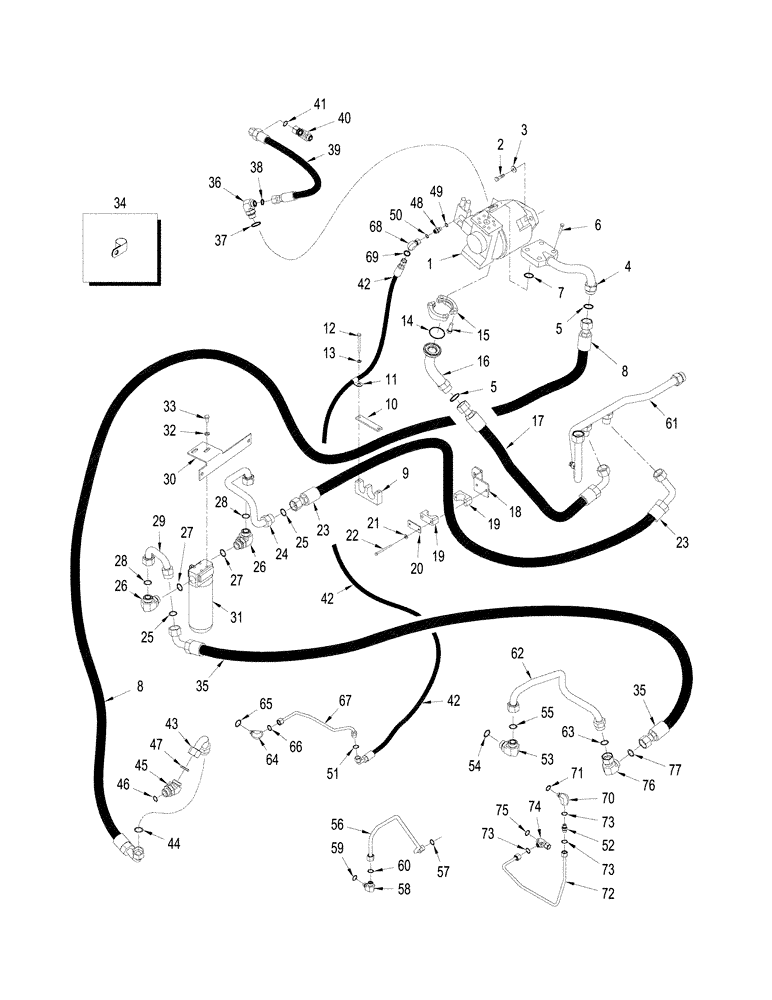

Схема запчастей Case IH STX280 - (08-39) - HYDRAULICS - TWIN FLOW CIRCUITRY (08) - HYDRAULICS
25
13
16
1
75
21
28
61
48
14
9
12
73
59
18
25
46
49
32
2
67
69
42
73
63
76
73
37
5
35
27
77
52
54
23
26
10
4
51
31
58
45
53
74
8
40
41
15
72
36
27
64
5
29
33
30
70
34
24
56
28
65
68
71
26
62
47
6
60
55
38
66
17
42
44
19
42
19
11
50
3
22
20
23
8
35
39
43
7
57

Артикул

Название

Примечание

Количество

1

407476A1

HYDRAULIC PUMP

Twin Flow, See Figure: 08-42

1шт.

1

407476A1C

CORE-HYDRAULIC PUMP

1шт.

1

407476A1R

REMAN-HYD PUMP

1шт.

2

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

2шт.

With Manual Shift Transmission

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

With Power Shift Transmission

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

4

414792A2

BRACKET

1шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

6

461-33832

HEX SOC SCREW,3/8"-16 x 2"

4шт.

7

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

8

441342A1

HOSE

Supply, 2692 mm (106"), Twinflow Pump Output to Valve Inlet

1шт.

9

414429A2

CLAMP BRACKET

1шт.

10

414856A1

PLATE

Mounting, Hose Clamp

1шт.

11

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

12

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

15

A14141

FLANGE

Split, 2

2шт.

16

414077A1

TUBE

Suction, Twinflow Pump, from Axle Lube Piston Pump Supply Tube

1шт.

17

441343A1

HOSE

Supply, 756 mm (30"), from Axle Lube Piston Pump Supply Tube to Twinflow Pump Suction Tube

1шт.

18

433047A2

BRACKET

Mounting, Hose

1шт.

19

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

Hose

2шт.

20

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

Hose Clamp

1шт.

21

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

441344A1

HOSE

1626 mm (64"), Filter Return to Piston Supply

1шт.

24

419661A1

TUBE

Return, Filter to Piston Supply

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

26

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 27, 28

3шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

29

419655A1

TUBE

Filter Inlet, Remote, Serial Range: Valve-Filter

1шт.

30

417856A2

BRACKET

Filter

1шт.

31

414219A1

FILTER

Twinflow Hydraulics, See Figure: 08-43

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

35

441345A1

HOSE

Return, 1956 mm (77"), Remote Valve to Filter Inlet

1шт.

36

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 37, 38

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

442745A1

HOSE

Case Drain, 737 mm (29"), Twinflow Pump to Tee on Return, Serial Range: Tube-Tank

1шт.

40

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Inc. 41

1шт.

41

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

42

441346A1

HOSE

Load Sense, 2565 mm (101"), Compensator Fitting on Twinflow Pumpto Remote Valve Load Sense Tube

1шт.

43

429941A2

TUBE

Supply, Twinflow Pump Output to Remote Valve Inlet

1шт.

44

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

45

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 46, 47

1шт.

46

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

47

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

48

1957867C1

FILTER SCREEN

1/4" orb x 3/8" fc sl, Inc. 49, 50

1шт.

49

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

51

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

52

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

1шт.

53

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 54, 55

3шт.

54

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

55

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

56

445701A1

TUBE

1шт.

57

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

58

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 59, 60

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

60

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

61

416271A2

TUBE

Pump Supply

1шт.

62

441946A1

TUBE

Return, Remote Valve to Filter Inlet

1шт.

63

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

64

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 65, 66

1шт.

65

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

66

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

67

441944A1

TUBE

Load Sense

1шт.

68

441925A1

ELBOW

Inc. 69

1шт.

69

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

70

428078A1

ELBOW

Inc. 71

1шт.

71

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

72

430536A1

TUBE

1шт.

73

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

74

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 75

1шт.

75

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

76

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 77

1шт.

77

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 82
