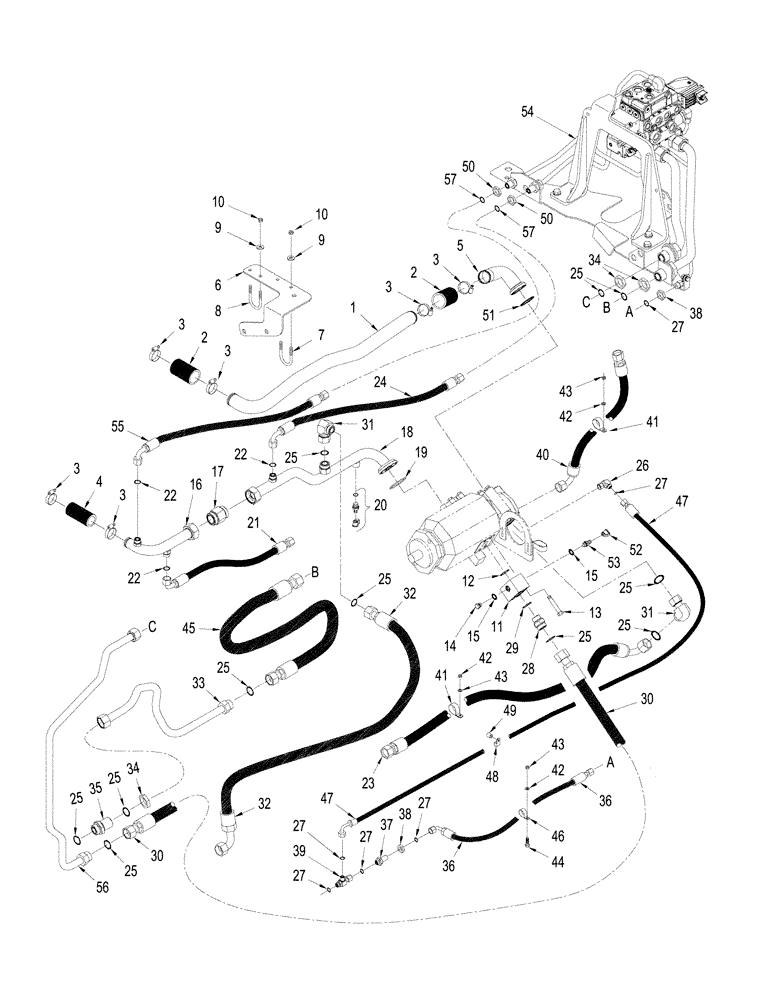

Запчасти Case IH STX280 (08-22) - HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH ACCUSTEER (08) - HYDRAULICS

1

419642A1

TUBE

Charge Pump Suction

1шт.

2

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4"), Cut From: 4-4568

2шт.

3

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

4

1-4571

HOSE

114 mm (4-1/2"), Cut From: 1-4482T1

1шт.

5

419641A1

TUBE

Charge Pump Supply

1шт.

6

430948A1

BRACKET

Mounting

1шт.

7

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

8

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

1шт.

9

495-21038

WASHER,5/16"

4шт.

10

231-1445

NUT,5/16"-18, GB

4шт.

11

86992232

BLOCK

Pump

1шт.

12

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

13

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

4шт.

14

220064A1

PLUG,M14 x 1.5, ORB

Incl. 15

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

16

87310685

TUBE,38.10 mm OD x 159, 126 mm L

Supply, Piston Pump

1шт.

17

87545498

CHECK VALVE

Inc. item 17A

1шт.

17a

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

For item #17

2шт.

18

419645A1

TUBE

Piston Pump Supply

1шт.

19

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

20

358968A1

FITTING

Diagnostic

1шт.

21

327499A1

HOSE ASSY.

665 mm (26-1/2")

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

397941A1

HOSE ASSY.

Charge Pump to Return Tube, 1700 mm (67")

1шт.

24

87308660

HOSE

500 mm (19.690"), to Tank Return Tube

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

6шт.

26

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 27

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

28

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 25 & 29

1шт.

29

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

30

327464A1

HOSE ASSY.

Pump Block to Priority Valve, 950 mm (37.400")

1шт.

31

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 25

1шт.

32

364317A1

HOSE

Regulator Valve to Piston Pump Supply, 1493 mm (58-3/4")

1шт.

33

87385132

HYD TUBE,20.58 mm ID x 25.40 mm OD x 478, 235 mm L

EF Supply

1шт.

34

701-908

BHD LOCK NUT,1-7/16" - 12

3шт.

35

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Inc. 25

1шт.

36

87308884

HOSE

to Shuttle Valve, 931 mm (36-1/2")

1шт.

37

701-120

UNION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Inc. 27

1шт.

38

701-909

NUT,11/16" - 16

2шт.

39

300209A1

VALVE

Shuttle

1шт.

40

364315A1

HOSE,25.4mm ID x 1305mm L

Charge Pump to Filter, 1305 mm (51-3/8")

1шт.

41

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

4шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

45

87397785

HOSE

EF Supply, 1258 mm (49-1/2")

1шт.

46

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

47

87315556

HOSE

Compensator to Shuttle Valve, 1909 mm (75")

1шт.

48

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3шт.

49

L126936

SPACER

1шт.

50

701-903

NUT,13/16" - 16

2шт.

51

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 52 & 53

1шт.

52

H434163

DUST CAP

1шт.

53

NSS

NOT SOLD SEPARAT

Fitting, Inc. 15

1шт.

54

REF

INSTRUCTION

Priority Valve, with Tubes & Brackets, See Figure: 08-23

1шт.

55

87310687

HOSE

to Tank Return Tube, 797 mm (31-3/8")

1шт.

56

87363639

TUBE

Pressure Supply, Serial Range: -Z7F105642

1шт.

56

87551754

TUBE,20.58 mm ID x 25.4 mm OD x 751, 583 mm L

Pressure Supply, Start Serial: Z7F105642

1шт.

57

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
