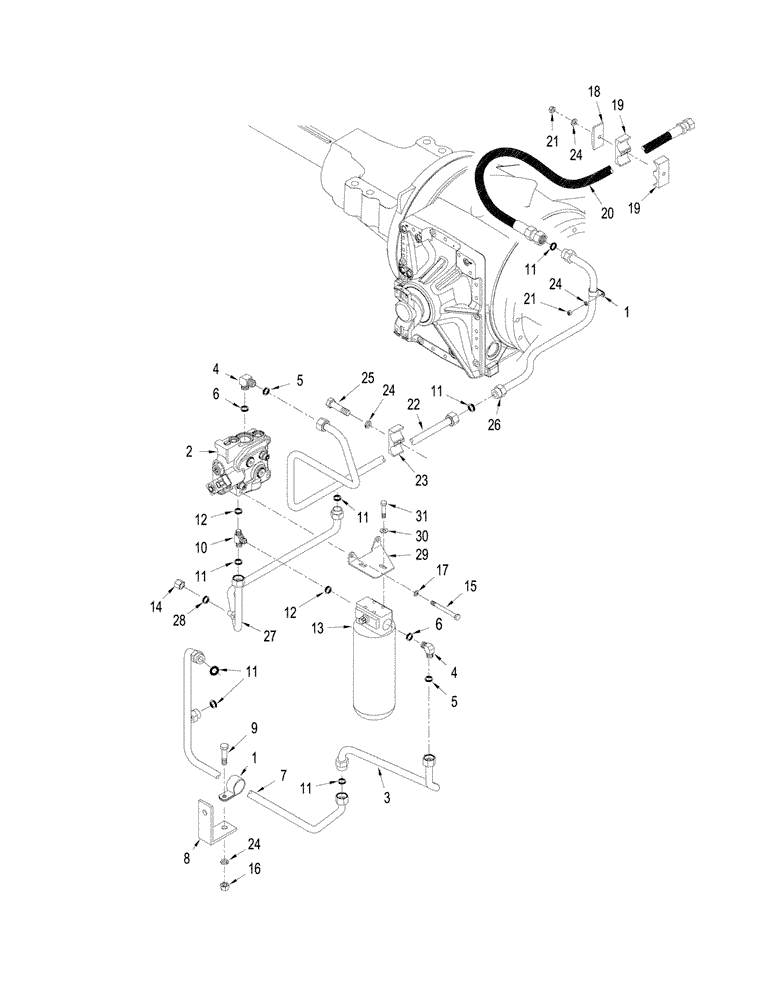

Запчасти Case IH STX280 (08-10) - AXLE HYDRAULICS - COOLING CIRCUIT, WITH ACCUSTEER (08) - HYDRAULICS

1

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

2

87672094

VALVE

Regulator, See Figure: 08-11

1шт.

3

416269A1

TUBE

1шт.

4

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 5 and 6

2шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

6

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

7

438369A2

TUBE

1шт.

8

416511A1

BRACKET

Mounting

2шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

10

328232A1

TEE

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

6шт.

12

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

13

86991559

FILTER ASSY

Main Hydraulic (Below Battery), See Figure: 08-04

1шт.

14

701-906

CAP,1" - 14

1шт.

Without Three Point Hitch

1шт.

15

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

18

50-2668T1

PLATE

1шт.

19

50-2965T1

HOSE CLAMP

2шт.

20

361770A1

HOSE ASSY.

1270 mm (50 in.)

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

22

416721A1

TUBE

1шт.

23

R15257

CLAMP

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

25

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

26

416725A1

TUBE

1шт.

27

416723A1

TUBE

1шт.

28

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

29

413322A1

BRACKET

Mounting

1шт.

30

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

31

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.
