Запчасти Case IH STX280 (07-05) - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WITHOUT ACCUSTEER (07) - BRAKES

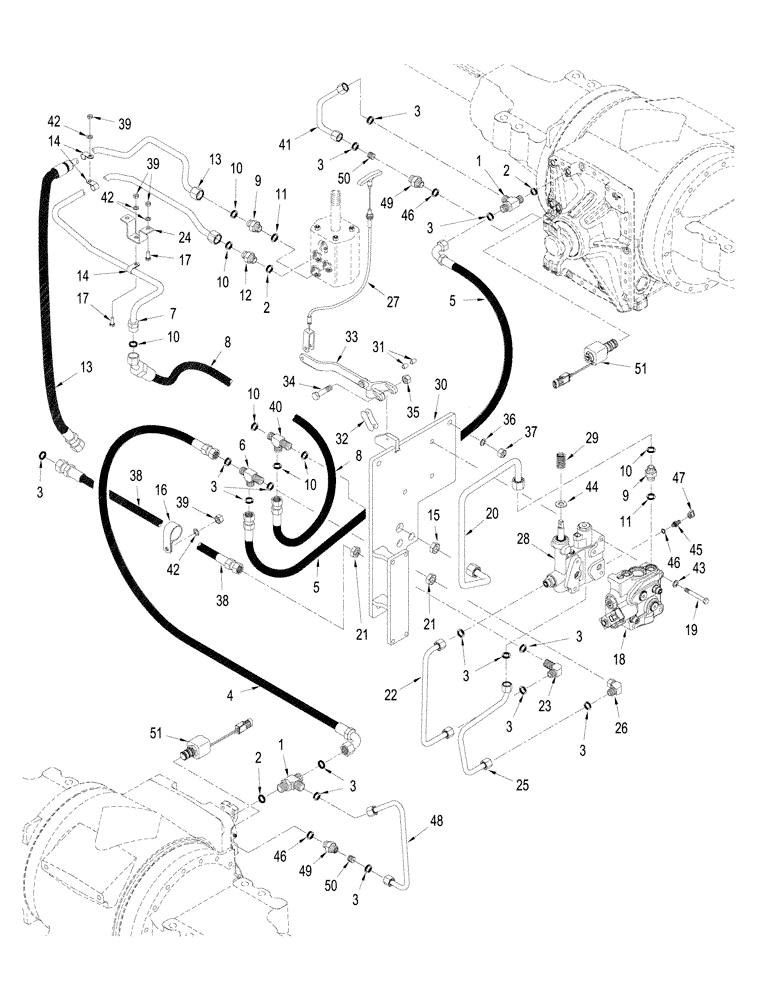

Схема запчастей Case IH STX280 - (07-05) - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WITHOUT ACCUSTEER (07) - BRAKES
3
45
3
17
4
27
25
21
11
21
51
42
16
3
50
2
7
3
37
3
15
2
10
12
39
48
1
39
8
3
44
46
23
38
10
1
3
9
46
3
35
6
9
13
26
8
49
18
10
39
3
47
24
49
42
51
36
28
3
17
34
41
43
46
3
10
22
32
20
10
38
42
14
33
14
13
40
10
30
2
19
29
31
5
50
11
5

Артикул

Название

Примечание

Количество

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 & 3

2шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

4

360200A2

HOSE ASSY.

1905 mm (75"), to Rear Axle Par Brake Port

1шт.

5

327479A2

HOSE

1720 mm (67"), Front Axle to Rear Axle

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 7

1шт.

7

87366186

HYD TUBE,12.6 mm ID x 15.9 mm OD x 1000, 300 mm L

Brake Supply

1шт.

8

392427A1

HOSE ASSY.

1947 mm (76-1/2"), Brake Valve to Regulator Valve

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10 & 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 2 & 10

1шт.

13

87329133

HOSE

Return

1шт.

14

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

15

701-919

BHD LOCK NUT,1" - 14

1шт.

16

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

18

87672094

VALVE

Regulator, See Figure: 08-11

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

Regulator Valve to Mounting Plate

1шт.

21

701-903

NUT,13/16" - 16

2шт.

22

449796A1

TUBE

Tow Valve to Mounting Plate Tee

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 3

1шт.

24

87310422

BRACKET

Mounting, Tube

1шт.

25

449798A1

TUBE

Tow Valve to Mounting Plate Tee

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 3

1шт.

27

349863A2

CABLE

Tow Valve, See Figure 08-14 for Mounting & Parts

1шт.

28

87679712

VALVE

Control, Tow Block, See Figure: 08-14

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

Mounting Tow Valve

1шт.

31

392748A1

SPACER

2шт.

32

242-4412

CHAIN LINK

Tow Valve Arm

1шт.

33

390918A3

ARM

Tow Valve

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

327484A2

HOSE ASSY.

1033 mm (40-1/2")

1шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

40

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 10

1шт.

41

416282A1

TUBE

Jumper, Front Axle

1шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

43

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

44

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 45 & 47

1шт.

45

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 46

1шт.

46

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

47

H434163

DUST CAP

1шт.

48

416276A1

TUBE

1шт.

341195A1

ORIFICE

Inc. 3, 46, 49 & 50

2шт.

49

NSS

NOT SOLD SEPARAT

Connectot, 13/16" fcsl x M14 orb

2шт.

50

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

1шт.

51

384977A1

VALVE

Solenoid, Differential Lock, See Figure: 07-09

2шт.
