Запчасти Case IH STX280 (06-63) - AXLE ASSEMBLY - FINAL DRIVE, STANDARD (06) - POWER TRAIN

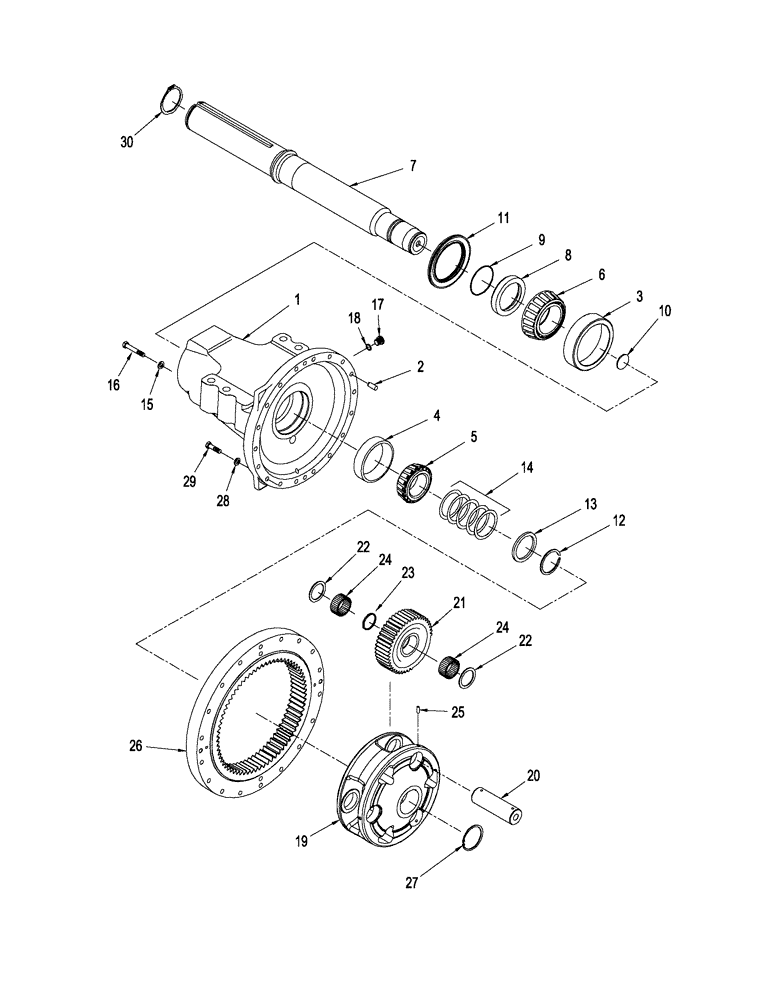

Схема запчастей Case IH STX280 - (06-63) - AXLE ASSEMBLY - FINAL DRIVE, STANDARD (06) - POWER TRAIN
5
25
19
26
23
22
22
24
4
17
16
13
30
28
10
20
24
27
14
18
12
7
15
11
29
21
2
3
8
6
9
1

Артикул

Название

Примечание

Количество

307347A2

CARRIER

Axle, 102 mm (4"), Inc. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Carrier, 4" Axle

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

4

368991A1

BEARING, CUP,180.96mm OD x 37.98mm W

1шт.

5

1963841C1

ROLLER BEARING,95.26mm ID x 36.22mm W

1шт.

6

368992A1

ROLLER BEARING,104.77mm ID x 47.93mm W

1шт.

360336A4

SHAFT

Axle, 102 mm (4.0"), Inc. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Axle, 102 mm ( 4.0")

1шт.

8

239529A1

BUSHING,114.91mm ID x 155mm OD x 26mm L

Outboard

1шт.

9

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

Axle Wear

1шт.

11

1963839C1

OIL SEAL

Axle Oil

1шт.

12

243856A1

RING, SNAP

RING SNAP Axle Retaining

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

95-31038

WASHER,5/16"

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Incl. 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

388366A1

PINION CARRIER

GEAR CARRIER Planetary

1шт.

20

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planetary

3шт.

21

310694A2

PLANETARY GEAR,29T

29 T

3шт.

22

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

6шт.

23

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

3шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

1шт.

25

838-3826

PIN,M8 x 26, Coiled

4шт.

26

310695A1

RING GEAR,77T

77 T

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

18шт.

30

800-51100

SNAP RING,M100, Ext, Hvy

Axle

4шт.

Выбрано товаров: 36
