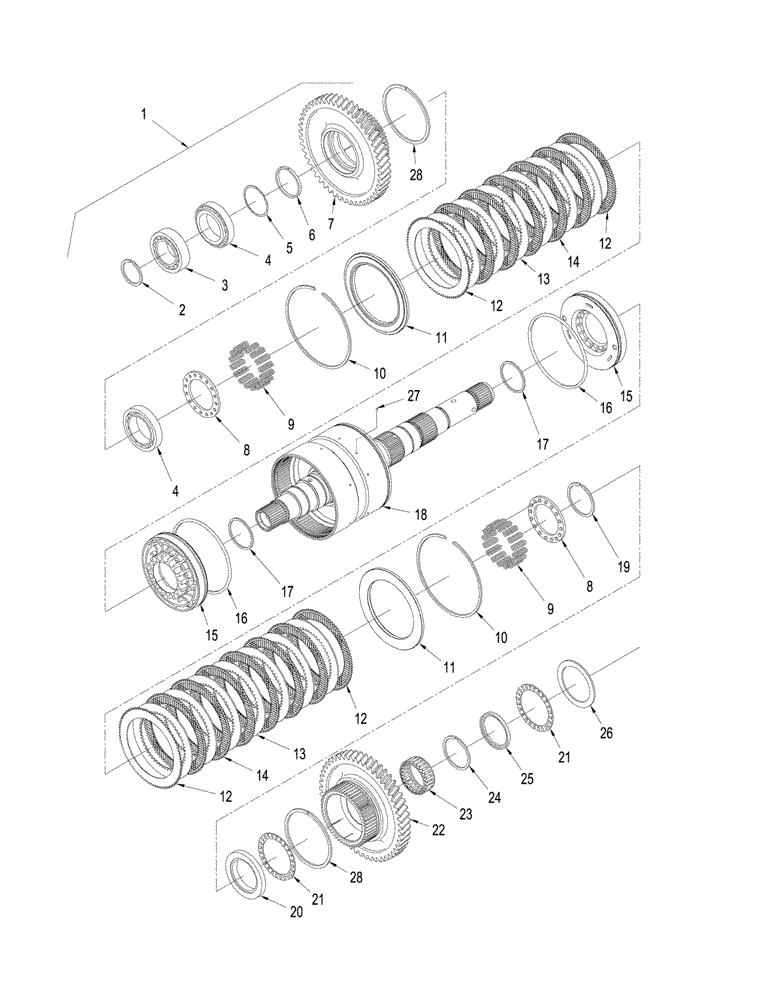

Запчасти Case IH STX280 (06-46) - POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN

1

87350228

CLUTCH INPUT SHAFT

Inc. 2 - 28, 7C, (8" Yoke) Also See Figure: 06-47, Serial Range: -Z6F105039

1шт.

1

87552053

CLUTCH INPUT SHAFT

Inc. 2 - 28, 7C, (8" Yoke) Also See Figure: 06-47, Start Serial: Z6F105039

1шт.

2

352378A1

RING, SNAP

RING SNAP 2,5 mm

1шт.

2

352394A1

RING, SNAP

RING SNAP 2,6 mm

1шт.

2

352397A1

RING, SNAP

RING SNAP 2,7 mm

1шт.

2

352400A1

RING, SNAP

RING SNAP 2,8 mm

1шт.

2

352815A1

RING, SNAP

RING SNAP 2,9 mm

1шт.

2

352816A1

RING, SNAP

RING SNAP 3,0 mm

1шт.

3

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

1шт.

4

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

4шт.

5

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

5

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

5

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

5

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

5

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

5

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

6

352825A1

SPACER

1шт.

7

87350229

GEAR

1R

1шт.

8

87350230

PLATE

Retainer Springs

2шт.

9

362616A1

SPRING

Return

32шт.

10

352829A1

RING, SNAP

RING SNAP

2шт.

11

87350231

PLATE

Clutch End

2шт.

12

352831A1

CLUTCH DISC

CLUTCH DISK Faced

4шт.

13

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0.094 in)

1шт.

13

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0.083 in)

1шт.

14

352832A1

CLUTCH DISC

CLUTCH DISK Faced

11-13шт.

15

87350236

PISTON

7"

2шт.

16

87431391

RING

Seal

2шт.

17

S2610S00F

RING

2шт.

18

87350255

SHAFT

Drum Assy.

1шт.

19

428163A1

RING, SNAP

RING SNAP

1шт.

20

353059A1

THRUST WASHER

1шт.

21

353060A1

THRUST BEARING

2шт.

22

87350258

GEAR

1M

1шт.

23

87350260

NEEDLE BEARING

1шт.

24

358866A1

RING, SNAP

RING SNAP

1шт.

25

358867A1

SPACER

1шт.

26

358908A1

THRUST WASHER

1шт.

27

S14701960

BALL,3.968mm OD

1шт.

28

87431394

RING

Seal

2шт.
