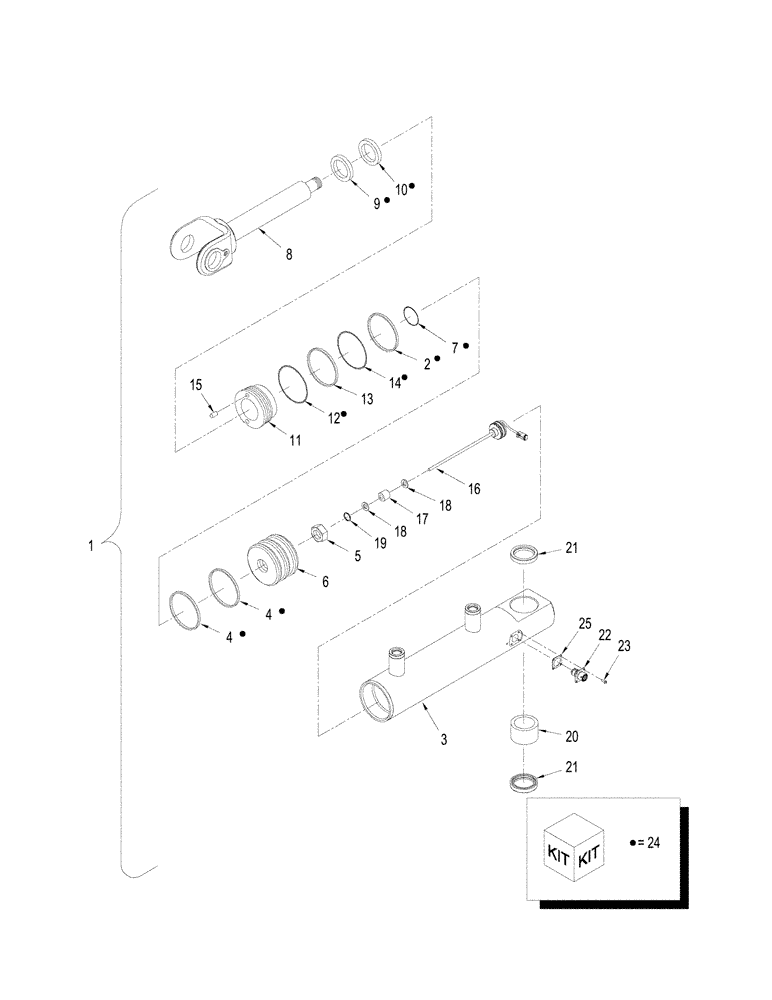

Запчасти Case IH STX280 (05-09) - CYLINDER ASSY - STEERING, WITH SENSOR, BSN Z7F105371 (05) - STEERING

1

87529572

CYLINDER

Steering, with Sensor, Inc. 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

3

87397772

CASE

Steering Cylinder

1шт.

4

87397844

SPACER

1шт.

5

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

6

87397769

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

87397771

SHAFT

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Retainer

1шт.

11

87397770

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Screw, 1/4"-20 NC x 3/8"

1шт.

16

87552134

SENSOR

Rod, Front Steering

1шт.

17

87397843

MAGNET

Magnet

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

2шт.

19

87532453

SNAP RING

Retainer

1шт.

20

388124A1

BUSHING

1шт.

21

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

2шт.

22

87451958

ELEC CONNECTOR,Female

Socket, 4 Pin

1шт.

23

87022296

SCREW,Phillips Drive, Pan HD, M3 x 8mm, Cl 4.8

4шт.

24

387790A1

SEAL KIT

Inc. 2, 4, 7, 9, 10, 12 - 14 & 25

1шт.

25

87364409

GASKET

1шт.
