Запчасти Case IH STX275 (04-16) - CONTROL PANEL COMPONENTS, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS

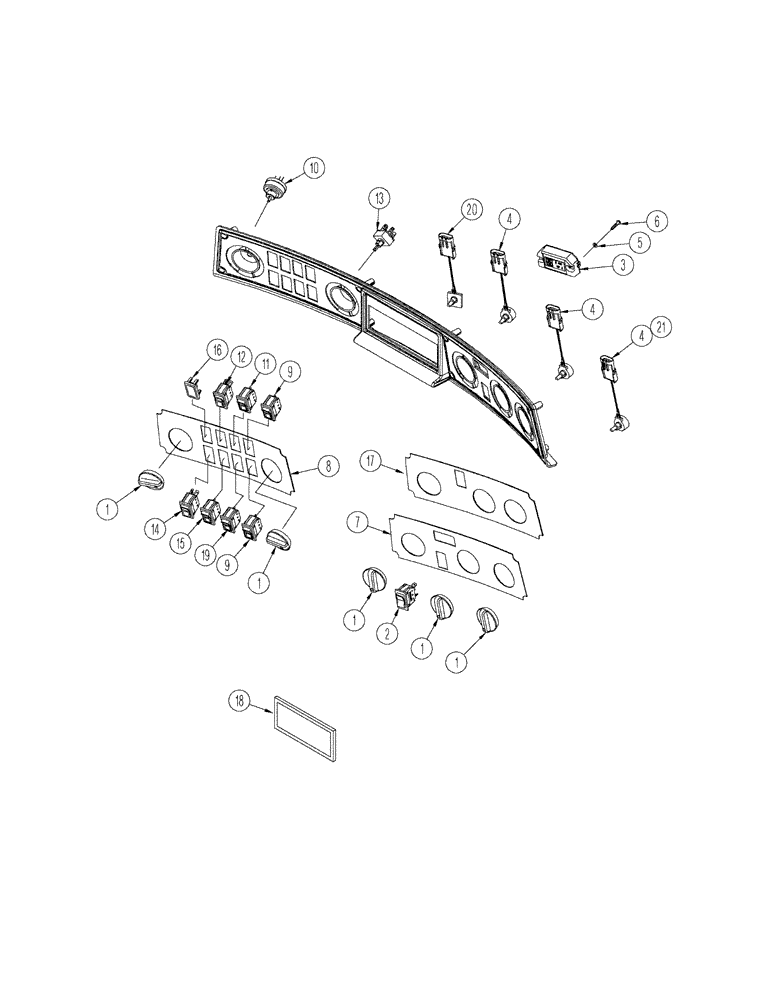

Схема запчастей Case IH STX275 - (04-16) - CONTROL PANEL COMPONENTS, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS
4
9
9
8
4
1
4
12
1
3
13
1
11
18
16
15
21
2
20
10
7
1
1
6
5
19
17
14

Артикул

Название

Примечание

Количество

1

1331046C2

KNOB

5шт.

2

255036A1

SWITCH

A/C Cutoff

1шт.

Without Automatic Temperature Control

1шт.

2

295011A1

SWITCH

1шт.

With Automatic Temperature Control

1шт.

3

308910A2

DISPLAY

1шт.

With Automatic Temperature Control

1шт.

4

418107A1

POTENTIOMETER,10,000 Ohm

1шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

6

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

2шт.

7

308647A4

DECAL

HVAC

1шт.

With Automatic Temperature Control

1шт.

8

431230A1

DECAL

Light Panel

1шт.

9

356885A1

SWITCH

Rear and Lower Front Wiper

2шт.

10

177250A1

LIGHT SWITCH

Rotary

1шт.

11

430893A1

SWITCH

Cruise Control

1шт.

12

229379A1

SWITCH

Strobe

1шт.

13

345262A1

WINDSHIELD WASHER SW

Wiper

1шт.

14

229372A1

LIGHT SWITCH

Road Lamp

1шт.

15

330116A1

SWITCH

Auxiliary, Implement

1шт.

16

86000535

PLUG,1.427" x .62", Plastic

3шт.

17

308646A4

DECAL

1шт.

Without Automatic Temperature Control

1шт.

18

1535219C1

COVER

Without Radio

1шт.

19

430894A1

SWITCH

Cruise Control, Increase / Decrease

1шт.

20

92100C2

SWITCH

Blower Motor

1шт.

Without Automatic Temperature Control

1шт.

21

345439A1

POTENTIOMETER,10,000 Ohm

Vent Motor

1шт.

Without Automatic Temperature Control

1шт.

Выбрано товаров: 29
