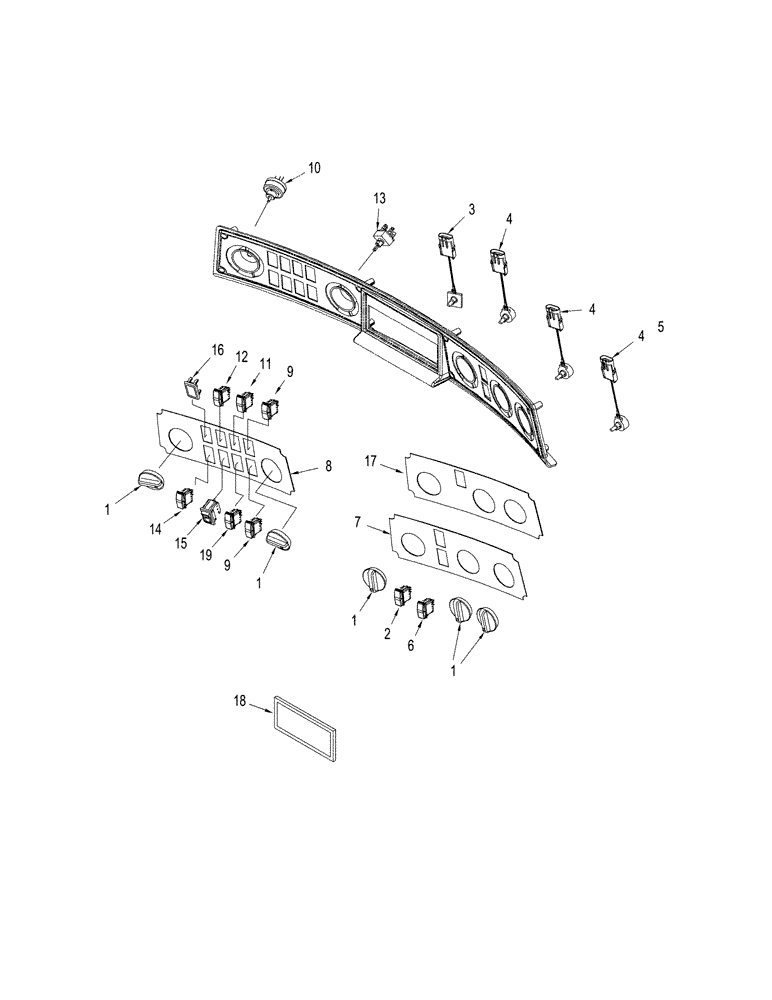

Запчасти Case IH STX275 (04-16[01]) - CONTROL PANEL COMPONENTS, ASN JEE0106701 (04) - ELECTRICAL SYSTEMS

1

1331046C2

KNOB

5шт.

2

87405636

SWITCH

Climate Control

1шт.

Without Automatic Temperature Control

1шт.

2

87454558

SWITCH

Climate Control

1шт.

With Automatic Temperature Control

1шт.

3

92100C2

SWITCH

Blower Motor

1шт.

Without Automatic Temperature Control

1шт.

4

418107A1

POTENTIOMETER,10,000 Ohm

1шт.

5

345439A1

POTENTIOMETER,10,000 Ohm

Vent Motor

1шт.

Without Automatic Temperature Control

1шт.

6

87305994

SWITCH

Defog

1шт.

7

87450974

DECAL

Climate Control, See Figure 09-53

1шт.

With Automatic Temperature Control

1шт.

8

431230A1

DECAL

Light Panel

1шт.

9

86989939

WINDSHIELD WIPER SWI

Rear and Lower Front

2шт.

10

177250A1

LIGHT SWITCH

Rotary, Work

1шт.

11

86989955

SWITCH

Cruise Control

1шт.

12

87414325

SWITCH

Beacon-Strobe

1шт.

13

345262A1

WINDSHIELD WASHER SW

Front Washer / Wiper

1шт.

14

87442098

LIGHT SWITCH

Road Lamp / Flasher

1шт.

15

330116A1

SWITCH

Auxiliary, Implement

1шт.

16

86000535

PLUG,1.427" x .62", Plastic

3шт.

17

308646A4

DECAL

Climate Control, See Figure 09-53

1шт.

Without Automatic Temperature Control

1шт.

18

1535219C1

COVER

Without Radio

1шт.

19

86989953

SWITCH

Cruise Control, Increase / Decrease

1шт.
