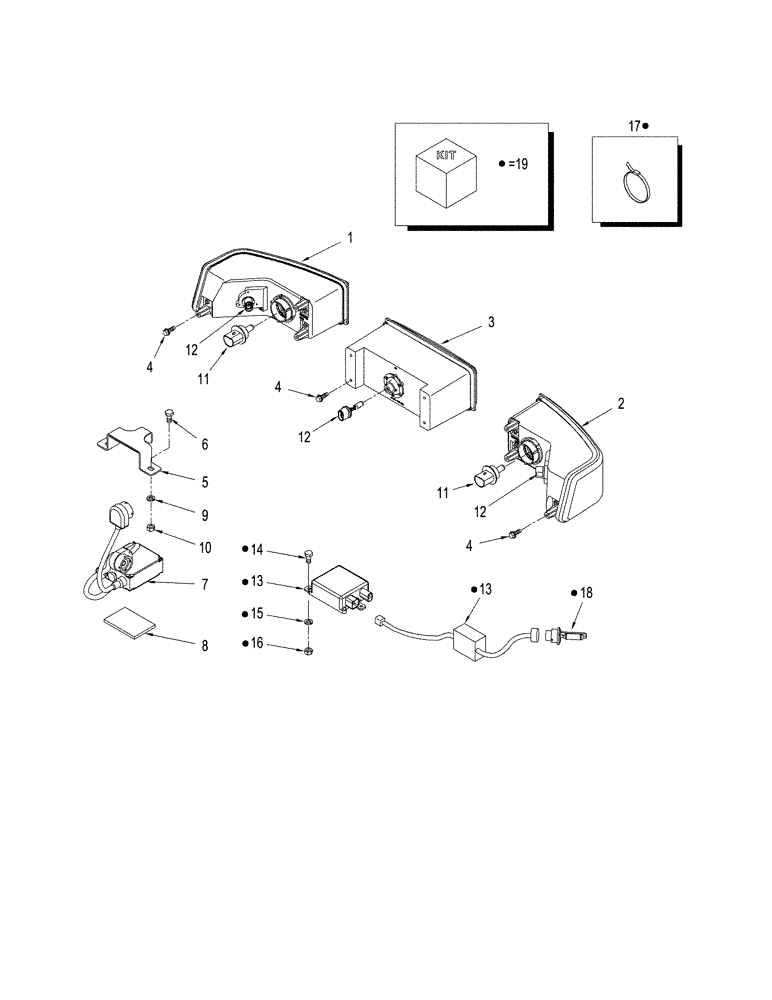

Запчасти Case IH STX275 (04-14) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

1

365842A1

HEADLAMP

With Work Lamp, LH, Inc. 11 and 12

1шт.

2

365841A1

HEADLAMP

With Work Lamp, RH, Inc. 11 and 12

1шт.

3

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center, Halogen, Inc. 12

1шт.

3

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center, High Intensity Discharge (H.I.D.)

1шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

10шт.

5

333646A1

CLAMP

Ballast, High Intensity Discharge

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

7

322332A1

BALLAST

Center, High Intensity Discharge (H.I.D.)

1шт.

8

333643A1

GASKET

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

388872A1

BULB

Headlamp

1шт.

12

323093A1

BULB

885-12V, Halogen Work Lamp

1шт.

13

87427690

BALLAST

Harness and Front Jumper, RH & LH, Inc. 12

2шт.

14

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

6шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

16

832-10405

NUT,M5 x .8, Cl 8

6шт.

17

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (175 - 200 mm)

4шт.

18

87427689

BULB

H.I.D., w/ Harness

2шт.

19

719619003

FIP KIT

H.I.D. Light, Lower Front

1шт.
