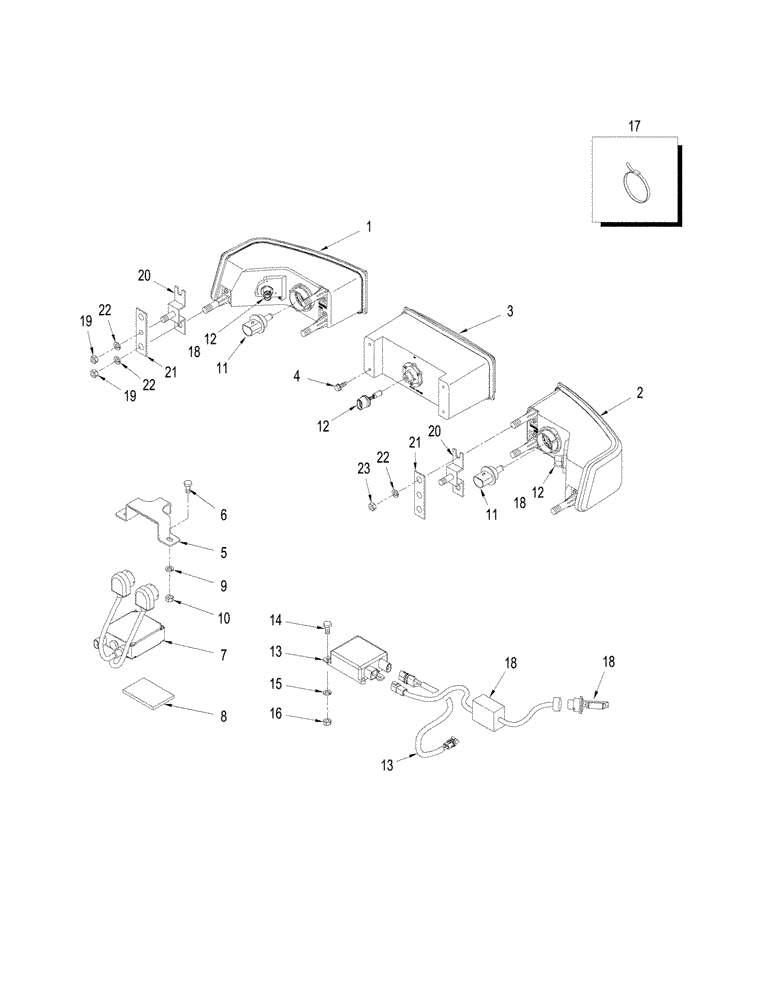

Запчасти Case IH STX275 (04-14[01]) - HEADLAMPS, EUROPE (04) - ELECTRICAL SYSTEMS

1

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, with DIP, Incl. 11, 12

1шт.

for Europe Purchase

1шт.

1

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, with DIP, Inc. 11, 12

1шт.

for United Kindom Purchase

1шт.

2

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH, with DIP, Inc. 11,12

1шт.

for Europe Purchase

1шт.

2

232450A2

HEADLIGHT,12V

RH, with DIP, Inc. 11, 12

1шт.

for United Kindom Purchase

1шт.

3

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center, Halogen, Inc. 12

1шт.

3

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center, High Intensity Discharge (H.I.D.)

1шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

4шт.

5

333646A1

CLAMP

High Intensity Discharge (H.I.D.)

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

7

322332A1

BALLAST

Center, High Intensity Discharge (H.I.D.)

1шт.

8

333643A1

GASKET

Foam

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

388872A1

BULB

Headlamps

2шт.

12

323093A1

BULB

885-12V, Halogen, Work Lamp

2шт.

13

87427690

BALLAST

Harness & Front Jumper, Right-Hand & Left-Hand Lamps, Inc. 18

2шт.

14

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

16

832-10405

NUT,M5 x .8, Cl 8

1шт.

17

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (175 - 200 mm)

4шт.

18

87366792

BULB

H.I.D, w/ Harness

2шт.

19

832-10406

NUT,M6 x 1, Cl 8

8шт.

20

391709A1

SUPPORT

Mounting

4шт.

21

391666A1

SUPPORT

Mouinting

4шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.
