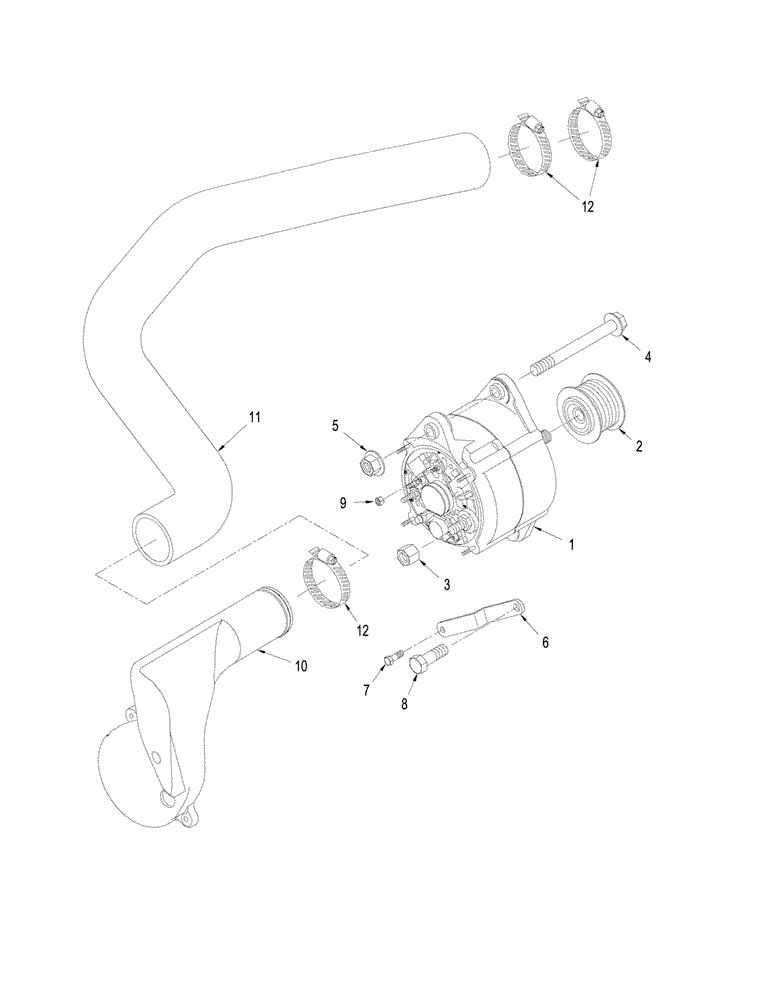

Запчасти Case IH STX275 (04-06) - ALTERNATOR - MOUNTING (04) - ELECTRICAL SYSTEMS

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp, See Figure 04-07

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87601413

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87601410

CORE-ALTERNATOR

Return Part Number

1шт.

1

125849A1GV

ALTERNATOR

Value, 135 Amp

1шт.

2

86975356

PULLEY

1шт.

3

231-1447

NUT,7/16"-14, GB

1шт.

4

855-12150

BOLT,Hvy Hex, M12 x 150mm, Cl 10.9

M12 x 150; 8.8

1шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

6

J944312

BRACE

1шт.

7

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

8

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

9

492-11044

LOCK WASHER,7/16"

1шт.

10

86983589

COVER

, Start Serial: JEE0102291

1шт.

11

86983590

HOSE,63.50 mm ID x 849.10 mm, SAE J20

, Start Serial: JEE0102291

1шт.

12

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

, Start Serial: JEE0102291

1шт.
