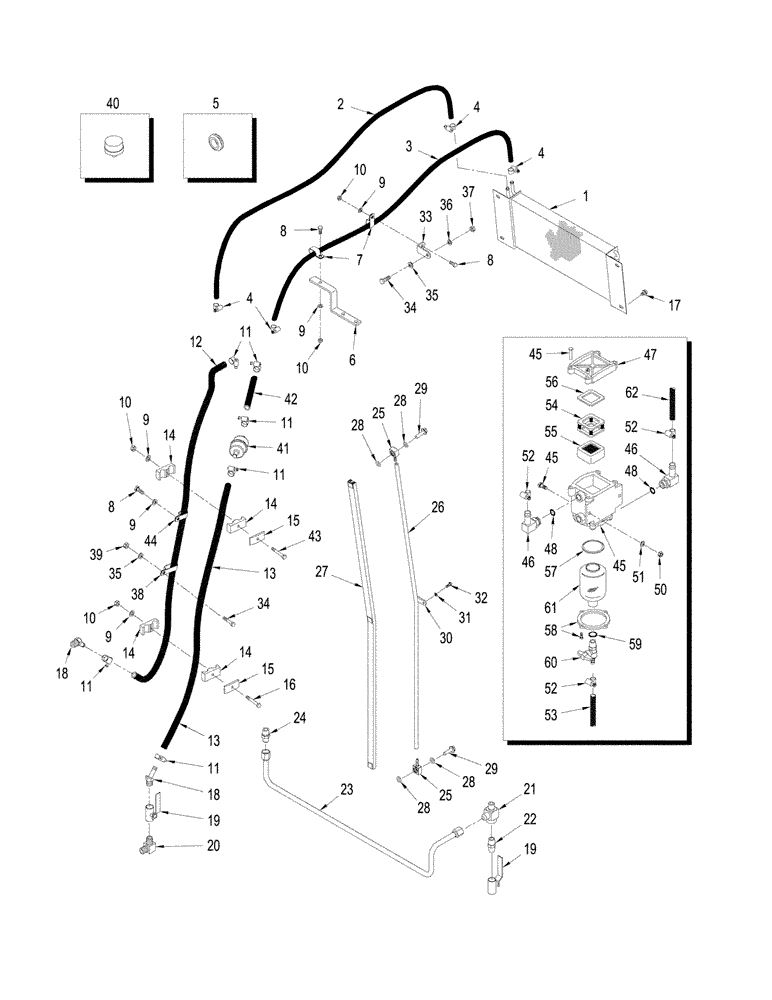

Запчасти Case IH STX275 (03-03[02]) - FUEL LINES, WITH ACCUSTEER (03) - FUEL SYSTEM

1

319549A1

COOLER

1шт.

2

338969A1

FUEL HOSE,9.53 mm ID x 2180.00 mm

Return, Cut From 32-012

1шт.

3

338970A1

FUEL HOSE,9.53 mm ID x 1738.00 mm

Cut From 32-012

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

5

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

2шт.

6

359105A1

BRACKET

1шт.

7

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

11

214-1408

HOSE CLAMP,11.2mm - 19.8mm

6шт.

12

372276A1

HOSE

Return, Cut From 32-080T1

1шт.

13

31-2107

FUEL HOSE

Supply, 3302 mm (130 in), Cut From 32-080T1

1шт.

14

50-2551T1

CLAMP

6шт.

15

50-2533T1

PLATE

3шт.

16

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

18

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1/2 x 1/2 barb

2шт.

19

31-1267

SHUT-OFF VALVE

Ball

2шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1/2 PT

1шт.

21

31-1000

TEE

1/2 PT x 1/2 PT x 7/8 fl

1шт.

22

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1/2 PT x 1-7/8

1шт.

23

314287A2

FUEL TUBE

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

7/8 fl x 1/2 PT

1шт.

25

352767A1

FITTING

2шт.

26

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Gauge, Cut From 337242A1

1шт.

27

349870A1

CHANNEL

Sight Gauge

1шт.

28

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

29

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

30

402800A1

BRACKET

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

32

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

33

369960A1

BRACKET

Fuel Line

1шт.

34

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

36

892-11010

LOCK WASHER,M10

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

39

833-40310

NUT,M10, U

1шт.

40

90-7732T1

BREATHER

1шт.

41

194199A1

FUEL FILTER

Fuel, In-Line

1шт.

42

31-3084

HOSE,5.00"

127 mm (5 in.), Cut From 32-080T1

1шт.

43

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

44

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

87409378

FUEL FILTER

Fuel Strainer, Inc. 45, 54 - 61

1шт.

45

NSS

NOT SOLD SEPARAT

Auxiliary Housing

1шт.

46

217-367

FITTING,90 Degree Elbow, 1/2" Hose Barb x 7/8" - 14 Male ORB

1/2 barb x 7/8 Or, Inc. 48

2шт.

47

87608457

SPECIAL BOLT

4шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

51

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

52

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

53

87414236

HOSE

Drain

1шт.

54

87333679

SPRING

Fuel Frame

1шт.

55

87409379

FUEL FILTER,30 Micron

30 Micron

1шт.

56

87333676

GASKET

Fuel Strainer

1шт.

57

87331930

GASKET

1шт.

58

87333671

RING

Retainer

1шт.

59

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

60

369844A1

DRAINCOCK/TAP SUPPLY

Valve

1шт.

61

87409380

FILTER BOWL

Bowl, Clear

1шт.

62

87314470

HOSE,12.70 mm ID x 485 mm

1шт.

62

87314470

HOSE,12.70 mm ID x 485 mm

1шт.
