Запчасти Case IH STX275 (02-29) - GASKET KIT - BASIC SERVICE ENGINE (02) - ENGINE

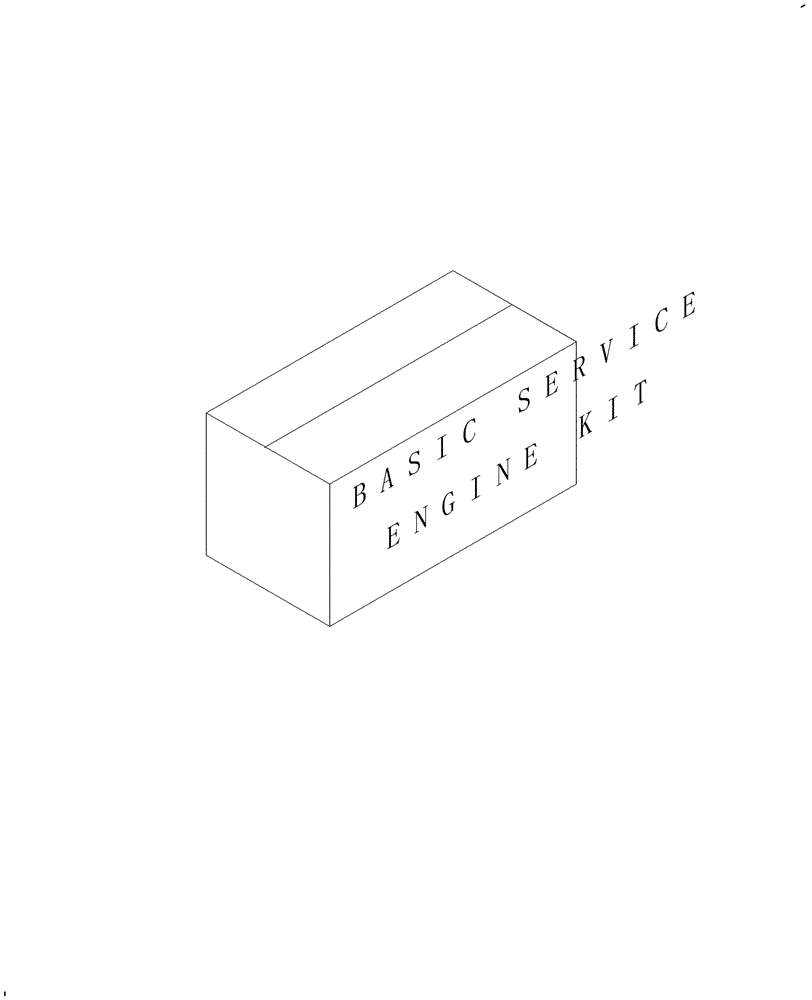

Схема запчастей Case IH STX275 - (02-29) - GASKET KIT - BASIC SERVICE ENGINE (02) - ENGINE
basic service
engine kit

Артикул

Название

Примечание

Количество

A78003

GASKET KIT

Inc. 1 - 24

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

3

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

4

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

5

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

2шт.

6

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

7

J330081

O-RING

1шт.

8

J330202

O-RING,11.3MM ID x 2.2 Thk

2шт.

9

J330478

O-RING,0.07" Thk x 0.676" ID

2шт.

10

J678603

O-RING,2.2mm Thk x 9.3mm ID

2шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

12

J867043

SEAL,1.78mm Thk x 10.82mm ID

6шт.

13

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

14

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

Injection Tip, 1.5 mm

6шт.

15

J911941

GASKET

Turbocharger Mounting

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Rear Cover

1шт.

17

J917892

GASKET,0.79mm Thk

Connection

1шт.

18

J919369

GASKET,0.5mm Thk

Turbocharger

1шт.

19

J939258

GASKET,1.21mm Thk

Lift Pump

1шт.

20

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

4шт.

21

84368103

MANIFOLD GASKET,1.08mm Thk

Exhaust Manifold

6шт.

22

J944646

MANIFOLD GASKET

Cover

1шт.

23

87447963

GASKET

Connection

1шт.

24

87436828

GASKET

Breather

1шт.

25

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

Выбрано товаров: 26
