Запчасти Case IH STX275 (02-26[01]) - PISTONS AND CONNECTING RODS, STX275 (02) - ENGINE

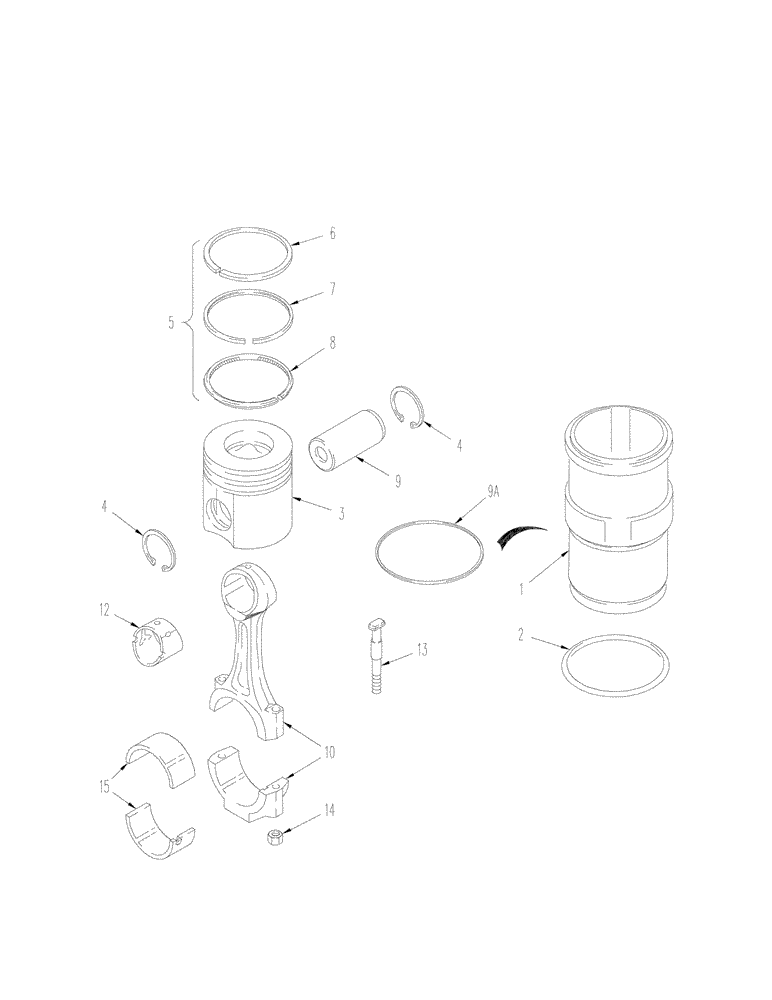

Схема запчастей Case IH STX275 - (02-26[01]) - PISTONS AND CONNECTING RODS, STX275 (02) - ENGINE
6
9
10
12
2
4
1
9a
8
3
5
15
7
4
14
13

Артикул

Название

Примечание

Количество

A77901

PISTON & RINGS KIT

Piston and Sleeve, Standard, Inc. 1 - 8, Serial Range: -JEE0102292

6шт.

A77970

PISTON & RINGS KIT

Piston & Sleeve, Standard, Inc. 1 - 8, Start Serial: JEE0102292

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J800316

PISTON & RINGS KIT

Standard, Inc. 3 - 8, Serial Range: -JEE0102292

1шт.

J800320

PISTON & RINGS KIT

Standard, Inc. 3 - 8, Start Serial: JEE0102292

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

Standard, Inc. 6 - 8, Serial Range: -JEE0102292

1шт.

5

J802538

PISTON RINGS KIT

Standard. Inc. 6 - 8, Start Serial: JEE0102292

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

84145656

CONNECTING ROD

Inc. 10 - 14

6шт.

84145656R

REMAN-CONNECTING ROD

Inc. 10 - 14

6шт.

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod

6шт.

84487529R

REMAN-CONNECTING ROD

STX275 AFTER S/N JEE0099501, Reman for New P/N 84145656

6шт.

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

Rod, Connecting

1шт.

12

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

1шт.

13

J928870

ROD

2шт.

14

J934864

NUT

2шт.

15

87443389

BEARING LINER

Standard

6шт.

15

84156219

BEARING LINER

Undersize 0.25 mm

6шт.

15

84156220

BEARING SET

Undersize 0.50 mm

6шт.

15

84156221

BEARING SET

Undersize 0.75 mm

6шт.

15

84156222

BEARING SET

Undersize 1.00 mm

6шт.

Выбрано товаров: 33
