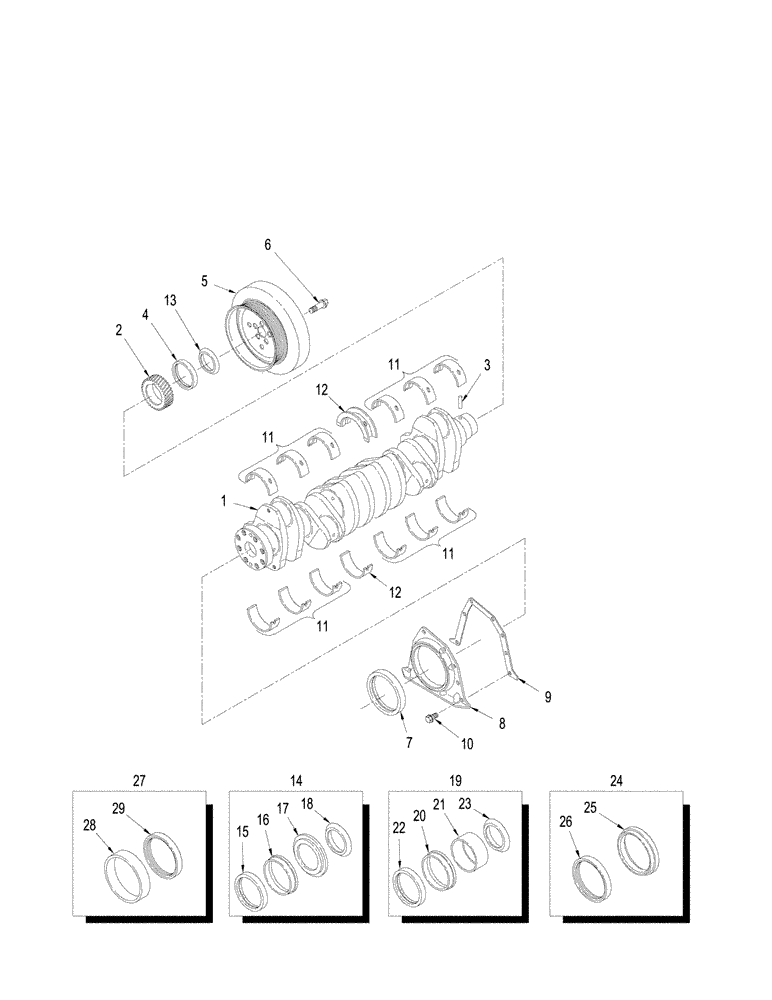

Запчасти Case IH STX275 (02-24[01]) - CRANKSHAFT, STX275 (02) - ENGINE

1

J918986

CRANKSHAFT

Inc. 2 and 3

1шт.

1

J918986R

REMAN-CRANKSHAFT

Remanufactured, N.A. Only, Inc. 2 and 3

1шт.

1

J918986C

CORE-CRANKSHAFT

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, , Order A77790

1шт.

5

J925567

DAMPER

Vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486

1шт.

8

J933384

REAR COVER

1шт.

9

87447962

GASKET,0.8mm Thk

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Oversize, 0.25 mm

6шт.

11

J945932

BEARING SET

Main, Oversize, 0.50 mm

6шт.

11

J945933

BEARING SET

Main, Oversize, 0.75 mm

6шт.

11

J945934

BEARING SET

Main, Oversize, 1.00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Oversize, 0.25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Oversize, 0.50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Oversize, 0.75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Oversize, 1.00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize 0.25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize 0.50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Oversize 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Inc. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Sleeve, Crankshaft, Front, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Inc. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve, Wear

1шт.

29

NSS

NOT SOLD SEPARAT

Seal, Oil

1шт.
