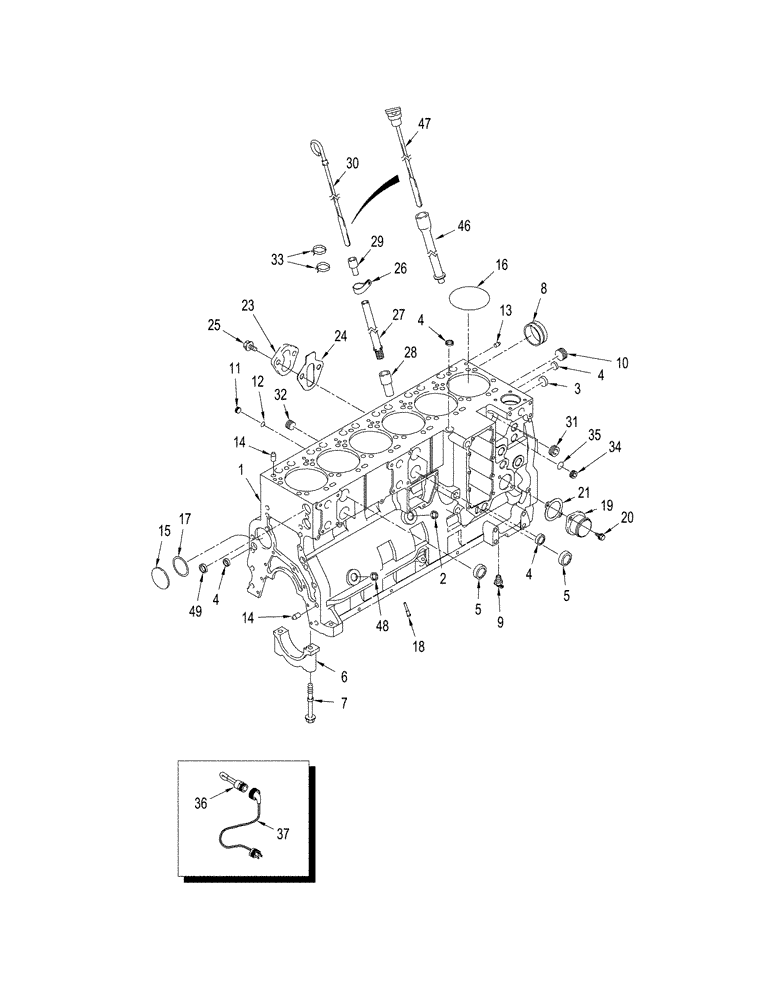

Запчасти Case IH STX275 (02-23[01]) - CYLINDER BLOCK, STX275 (02) - ENGINE

258975A1

BASIC ENGINE

275 hp

1шт.

Complete Engine, Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 382362A1

1шт.

1

382365A1

BASIC ENGINE

8.3L, 24 Valve, 6 Cyl.

1шт.

Deluxe Cab

1шт.

1

84252737R

REMAN-BASIC ENGINE

STX275

1шт.

1

84252737C

CORE-BASIC ENGINE

Return Part Number

1шт.

J991309

SHORT ENGINE

6TAA-8304 8.3L, Serial Range: -JEE0102292

1шт.

JR991309

REMAN-SHORT ENGINE

, Serial Range: -JEE0102292

1шт.

6-830-SHBC

CORE

Return Part Number, Engine, Short Block Cyl.

1шт.

J991308

SHORT ENGINE

6TAA-8304 8.3L, Start Serial: JEE0102292

1шт.

With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

JR991308

REMAN-SHORT ENGINE

, Start Serial: JEE0102292

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number, Engine, Short Block Cyl.

1шт.

84271502

KIT

Cylinder Block, Inc. 1 - 8, also order 84272274

1шт.

1

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

2

J920706

PLUG

22 mm OD

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

See Figure 02-22

7шт.

84272274

KIT

Cylinder Block Hardware, Inc. 9 - 18

1шт.

9

217-103

COCK, DRAIN

1/4" PT

1шт.

10

A77533

PLUG

1 PT, Serial Range: -JEE0102001

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

, Start Serial: JEE0102001

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

70 mm

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Piston

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

Piston Cooling

12шт.

19

J944720

HYD CONNECTOR

Water Inlet

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Not Illustrated

1шт.

23

J948083

COVER

1шт.

24

J939258

GASKET,1.21mm Thk

Lift Pump

1шт.

25

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

26

A77508

CLAMP

7/16" ID

1шт.

27

J936828

TUBE,9.53 mm ID x 12.7 mm OD x 350 mm L

Dipstick

1шт.

NOTE: If Dipstick J936826 And Tube J936828 Are Needed. Service with Dipstick 87418222 And Tube 87418224.

1шт.

28

87366160

TUBE,.375" OD

1шт.

NOTE: If Dipstick J936826 And Tube J936828 Are Needed. Service with Dipstick 87418222 And Tube 87418224.

1шт.

29

J905802

FITTING,9.53 mm OD x 39 mm L

Oil Fill Tube

1шт.

NOTE: If Dipstick J936826 And Tube J936828 Are Needed. Service with Dipstick 87418222 And Tube 87418224.

1шт.

30

J936826

DIPSTICK

1шт.

NOTE: If Dipstick J936826 And Tube J936828 Are Needed. Service with Dipstick 87418222 And Tube 87418224.

1шт.

31

A77505

PLUG

3/4 PT, Serial Range: -JEE0102001

3шт.

31

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, Start Serial: JEE0102001

1шт.

32

A77429

PLUG

1/2 PT, Serial Range: -JEE0102001

1шт.

32

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

, Start Serial: JEE0102001

1шт.

33

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Includes 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

310493A1

KIT

Heater, 120V/1000W, Inc. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

Element

1шт.

37

196466A1

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

310494A1

KIT

Heater, 240V/1000W, Inc. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

Element

1шт.

37

J913112

WIRE HARNESS

305 mm (12")

1шт.

A78019

ENGINE OVERHAUL KIT

Engine Block, Inc. 38 - 45, Not Illustrated

1шт.

38

A77901

PISTON & RINGS KIT

Piston, See Figure 02-26

6шт.

39

87443389

BEARING LINER

See Figure 02-26 (01)

6шт.

40

J934046

PISTON PIN,45mm OD x 91mm L

See Figure 02-26 (01)

6шт.

41

J945930

BEARING SET

See Figure 02-24 (01)

6шт.

42

J945929

THRUST BEARING

See Figure 02-24 (01)

1шт.

43

A78018

GASKET KIT

Not Illustrated, See Figure 02-27

1шт.

44

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Not Illustrated, See Figure 02-19

1шт.

45

A77999

GASKET KIT

Not Illustrated, See Figure 02-17

1шт.

46

87418224

TUBE,13.29mm L

Dipstick

1шт.

47

87418222

DIPSTICK

1шт.

48

J943808

PLUG

22 mm

1шт.

49

J920443

PLUG

30 mm

2шт.
