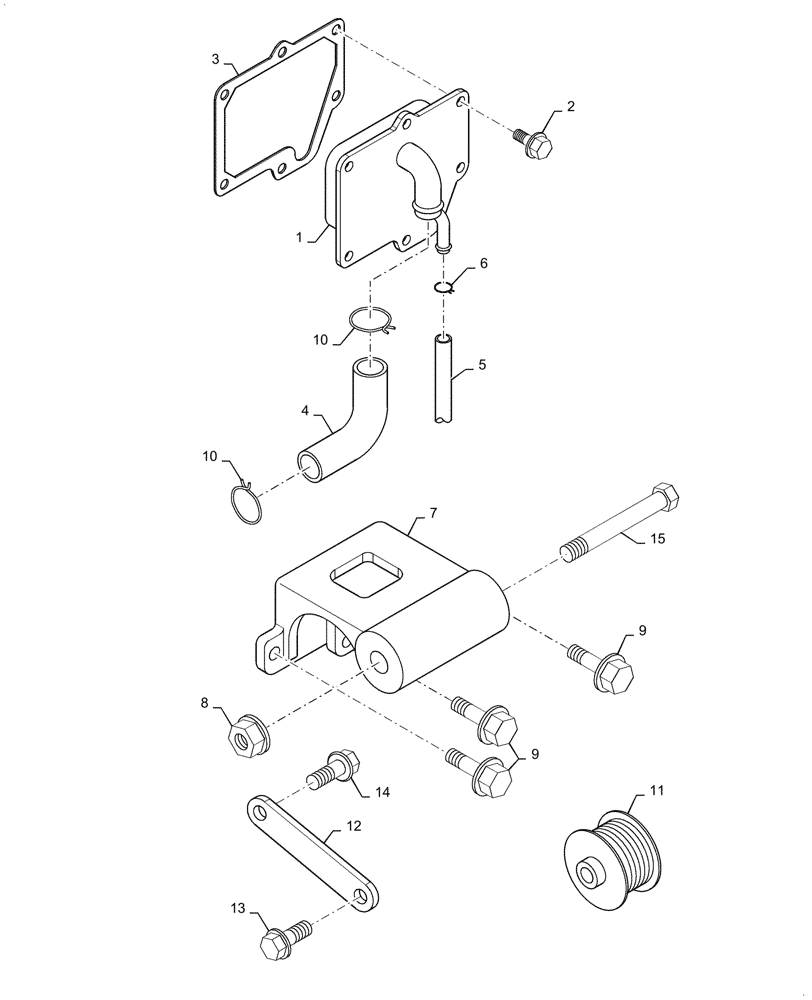

Запчасти Case IH STX275 (02-21) - CRANKCASE BREATHER AND ALTERNATOR MOUNTING (02) - ENGINE

1

87437062

BREATHER

Crankcase

1шт.

2

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

6шт.

3

87436828

GASKET

Breather

1шт.

4

87437060

HOSE

Molded Breather

1шт.

5

J944714

TUBE,320.00 mm

1шт.

6

214-1314

HOSE CLAMP,#14, 7/8", Spring

1шт.

7

87360715

SUPPORT

Alternator

1шт.

8

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

9

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

10

214-1315

HOSE CLAMP,#15, 15/16", Spring

2шт.

11

87452704

PULLEY,70.66mm OD

Alternator

1шт.

12

J944312

BRACE

1шт.

13

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

14

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

15

844-12150

BOLT,Hvy Hex, M12 x 150mm, Cl 8.8

1шт.
