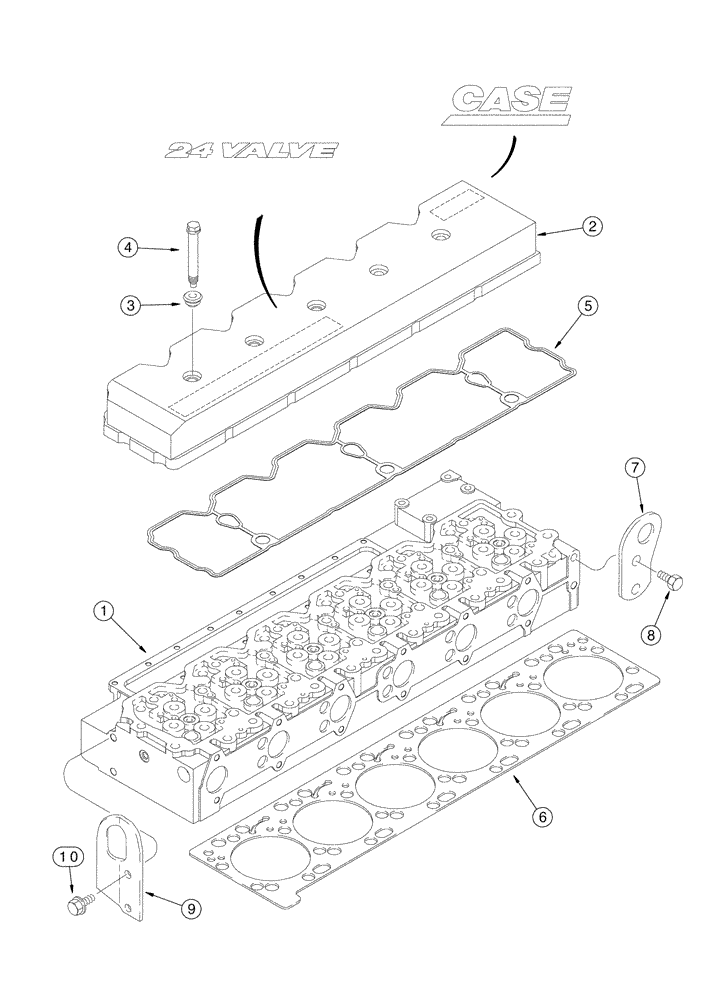

Запчасти Case IH STX275 (02-18) - CYLINDER HEAD COVER (02) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder, See Figure: 02-19

1шт.

2

J938445

VALVE COVER

1шт.

J990876

ISOLATOR

Inc. 3 and 4

1шт.

3

J939309

ISOLATOR

5шт.

4

NSS

NOT SOLD SEPARAT

Screw

5шт.

5

J939284

GASKET

Valve Cover

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

7

J944239

BRACKET

Front

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

J944290

BRACKET

Rear

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

11

87429619

FILLER CAP

Not Shown

1шт.
