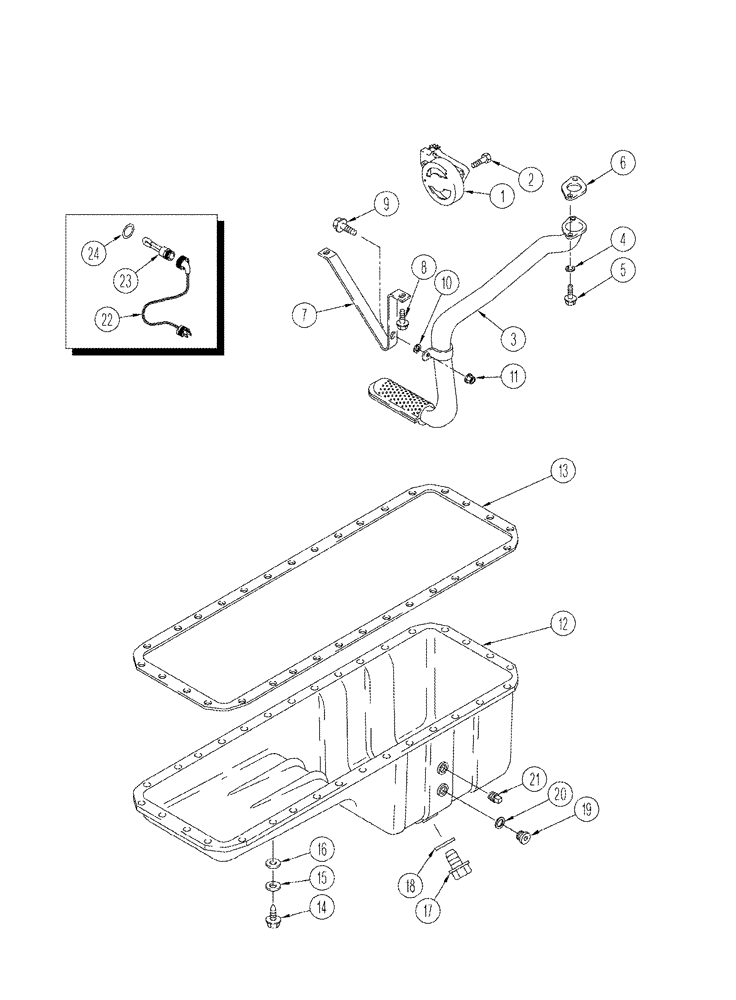

Запчасти Case IH STX275 (02-17) - OIL PUMP AND OIL PAN (02) - ENGINE

1

J948072

ENGINE OIL PUMP

6TAA-8304 8.3L Engine

1шт.

STX275

1шт.

1

JR948072

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP 6TAA-8304 8.3L Engine, Remanufactured Oil Pump; For N.A. Only

1шт.

STX275

1шт.

1

JC948072

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP 6TAA-8304 8.3L Engine; Return number - For N.A. only

1шт.

STX275

1шт.

1

J991123

ENGINE OIL PUMP

6TAA-9004 9.0L Engine

1шт.

STX325

1шт.

1

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP 6TAA-9004 9.0L Engine, Remanufactured Oil Pump; For N.A. only

1шт.

STX325

1шт.

1

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP 6TAA-9004 9.0L Engine; Return number - For N.A. only

1шт.

STX325

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J910787

TUBE

1шт.

STX275

1шт.

3

J944264

TUBE,1.25" OD

1шт.

STX325

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

Mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

87447959

GASKET,1.2mm Thk

Oil Suction

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

12

87359023

ENGINE OIL PAN

6TAA-8304 8.3L Engine

1шт.

STX275

1шт.

12

87357469

ENGINE OIL PAN

6TAA-9004 9.0L Engine

1шт.

STX325

1шт.

13

87308050

GASKET,0.95mm Thk

Seal

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

15

J910266

LOCK WASHER

32шт.

16

J908316

WASHER

M9 x 16 x 1

32шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

M22

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

M22

1шт.

21

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1шт.

STX325

1шт.

A77999

GASKET KIT

Inc. 6, 13, 18 and J920773

1шт.

A77580

SERVICE KIT

Heater, 120V / 300W, Inc. 22 and 23

1шт.

22

J906388

HEATING ELEMENT

1шт.

23

196466A1

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

A77666

SERVICE KIT

Heater, 240V, Inc. 22 and 23

1шт.

22

J906389

HEATING ELEMENT

1шт.

23

J905114

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
