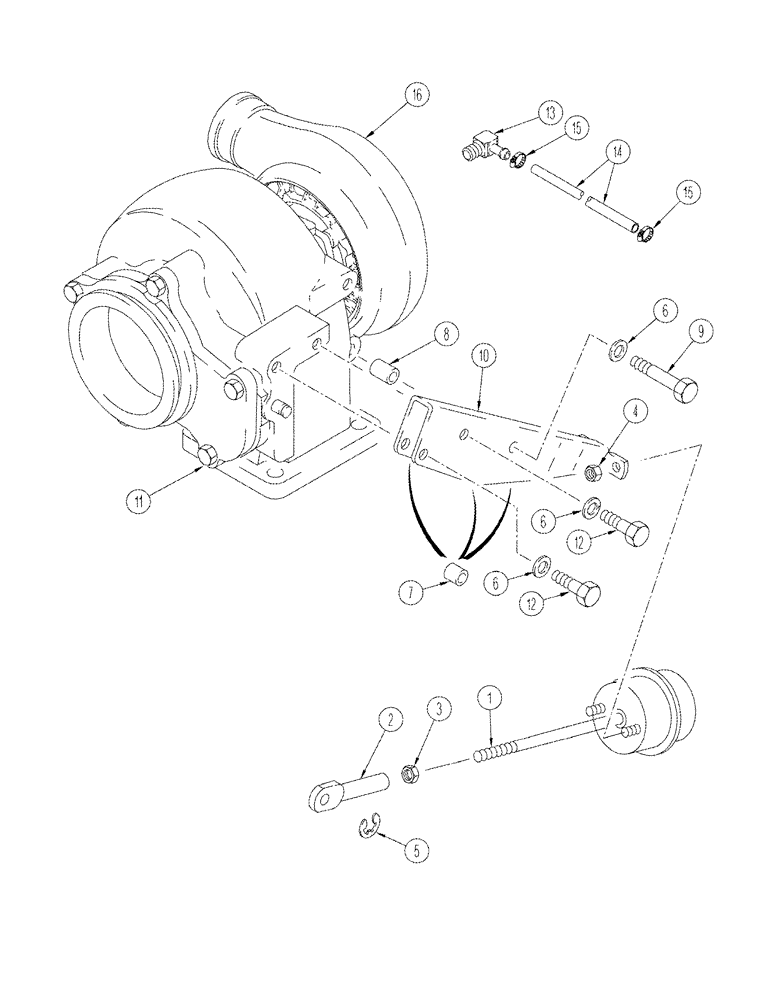

Запчасти Case IH STX275 (02-15[01]) - WASTEGATE ACTUATOR, STX275 (02) - ENGINE

J800426

SERVICE KIT

See Figure 02-14, Inc. 1 - 16, Also Inc. 1 - 22

1шт.

JR800426

REMAN-TURBOCHARGER

STX275 Aft. SN JEE0099501

1шт.

JC590348

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J533135

ACTUATOR

1шт.

1

J533135C

CORE-HYD CYLINDER

Return Part Number\r\n, Actuator

1шт.

1

J580830C

CORE-HYD CYLINDER

Return Part Number, Actuator

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

2шт.

5

J528221

CIRCLIP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

13.6 mm

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

19 mm

1шт.

9

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

J532671

BRACKET

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

J528121

ELBOW

1шт.

14

A77918

HOSE

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

16

NSS

NOT SOLD SEPARAT

Compressor

1шт.
