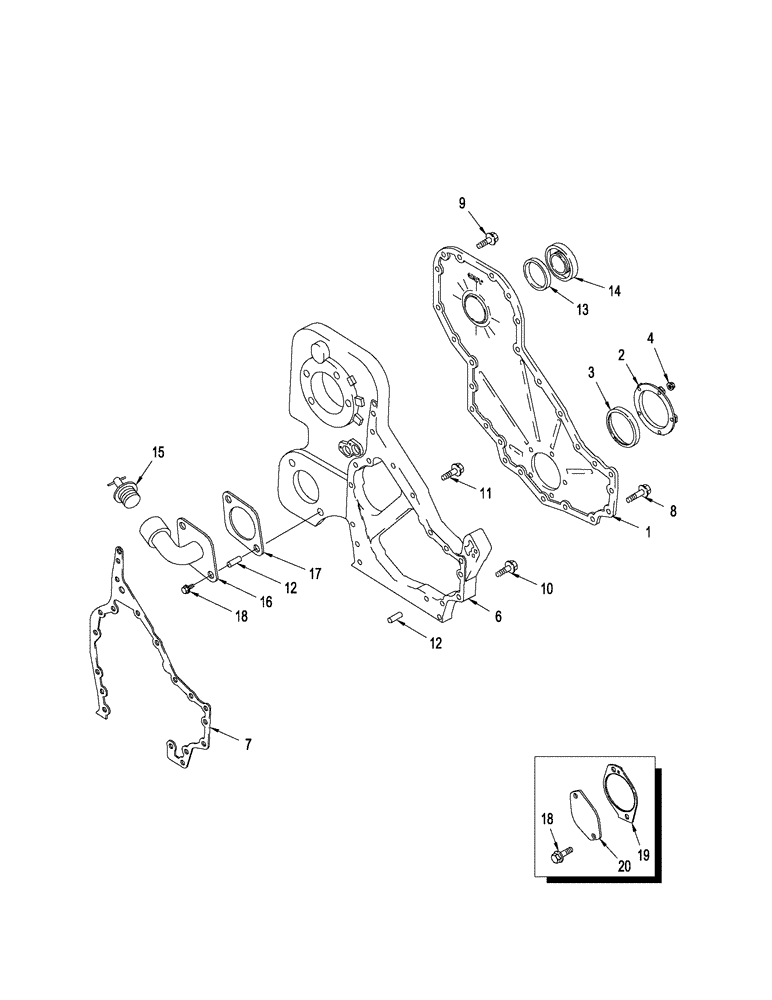

Запчасти Case IH STX275 (02-11) - FRONT GEAR COVER (02) - ENGINE

1

J948044

COVER

Front Gear

1шт.

2

J941786

CARRIER

Front Seal

1шт.

3

REF

INSTRUCTION

Seal, Order A77790 or A77808, See Figure 02-24

1шт.

4

J938077

LOCK NUT

M6 x 1, Flg, CL 8

5шт.

5

J823494

SEALANT

3 oz., Not Illustrated

1шт.

6

87497503

COVER

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

12шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

3шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Rectangular Ring

1шт.

14

J903463

PLUG,M63 x 5

Front Access

1шт.

15

314441A1

FILLER CAP

1шт.

16

J939033

TUBE,38.1 mm OD x 150.2 mm L

Oil Fill

1шт.

17

144169C2

GASKET,0.79mm Thk

1шт.

18

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

19

J940245

GASKET,1.27mm Thk

Hydraulic Pump

1шт.

20

J948083

COVER

Plate

1шт.
