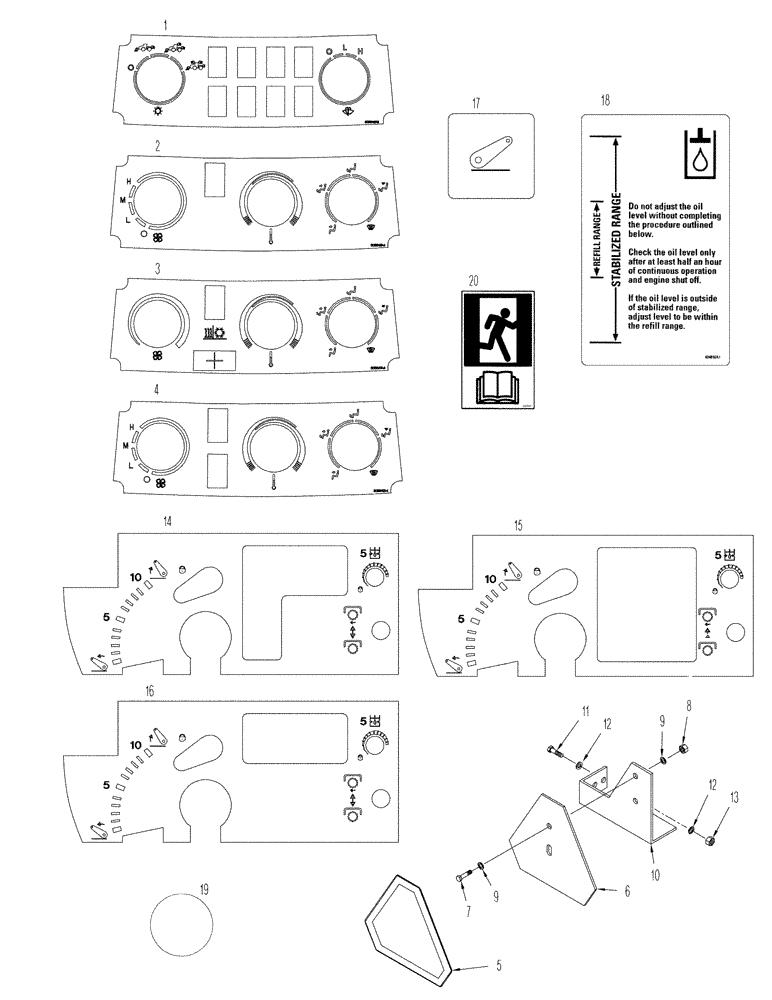

Запчасти Case IH STX275 (09-53) - DECALS (09) - CHASSIS

1

431230A1

DECAL

Light Panel

1шт.

2

308646A4

DECAL

Climate Control

1шт.

Standard Cab

1шт.

3

308647A4

DECAL

Automatic Temperature Control, Serial Range: -JEE0106701

1шт.

Luxury Cab

1шт.

Deluxe Cab

1шт.

4

87450974

DECAL

Automatic Temperature Control, Start Serial: JEE0106701

1шт.

Luxury Cab

1шт.

Deluxe Cab

1шт.

311860A1

EMBLEM

Slow Moving Vehicle, Inc. 5 and 6

1шт.

5

311858A1

DECAL

SMV Emblem

1шт.

6

NSS

NOT SOLD SEPARAT

Plate

1шт.

7

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

8

425-104

NUT,1/4"-20, Cl 5

2шт.

9

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

10

431187A1

BRACKET

1шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

430265A1

DECAL

Right-Hand Armrest, Serial Range: -JEE0102001

1шт.

Used on Engines ASN 46324151

1шт.

14

87403321

DECAL

Right-Hand Armrest, Serial Range: JEE0102001-JEE0106701

1шт.

Used on Engines ASN 46324151

1шт.

15

87412700

DECAL

Right-Hand Armrest, Start Serial: JEE0106701

1шт.

Used on Engines ASN 46324151

1шт.

16

430264A1

DECAL

Right-Hand Armrest, Serial Range: -JEE0102001

1шт.

Without Three Point Hitch

1шт.

16

87403320

DECAL

Right-Hand Armrest, Start Serial: JEE0102001

1шт.

Without Three Point Hitch

1шт.

17

393821A1

DECAL

1шт.

Used on Engines ASN 46324151

1шт.

18

434856A1

DECAL

Hydraulic Oil Level

1шт.

19

446562A1

DECAL

1шт.

Without Power Takeoff

1шт.

20

329051A1

DECAL

Emergency Exit

1шт.
