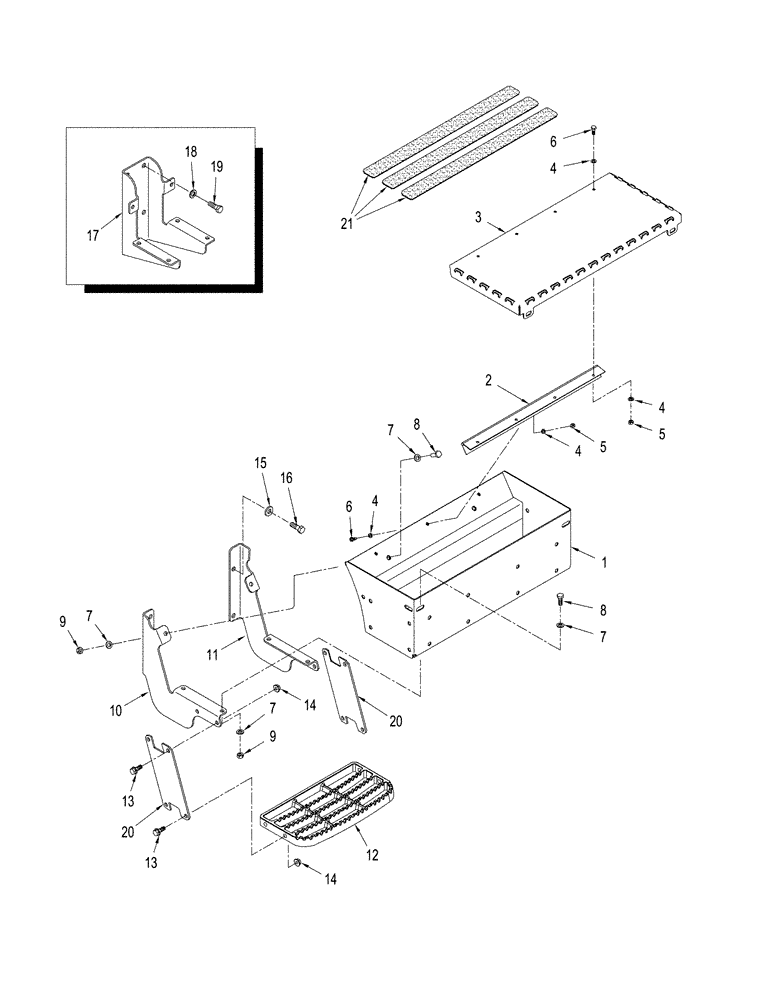

Запчасти Case IH STX275 (09-49) - STORAGE BOX (09) - CHASSIS

1

87325332

BOX

1шт.

2

70-6748T1

HINGE

1шт.

3

87307236

STEP

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

14шт.

5

832-10406

NUT,M6 x 1, Cl 8

7шт.

6

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

7шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

10

410814A1

BRACKET

Without Weights

1шт.

11

410815A2

BRACKET

Without Weights

1шт.

12

87301185

STEP

Lower

1шт.

13

905-10025

BOLT,Hex Flg, M10 x 25mm

8шт.

14

825-11410

NUT,M10 x 1.25, Cl 8

8шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

3шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

17

410817A1

BRACKET

With Weights

1шт.

18

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

19

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

20

410816A1

BRACKET

(Shown)

2шт.

20

87398174

STEP

Bracket, Plastic, 10 inch Length

2шт.

21

87307237

ANTI-SKID STRIP,2" x 23-1/4"

3шт.
