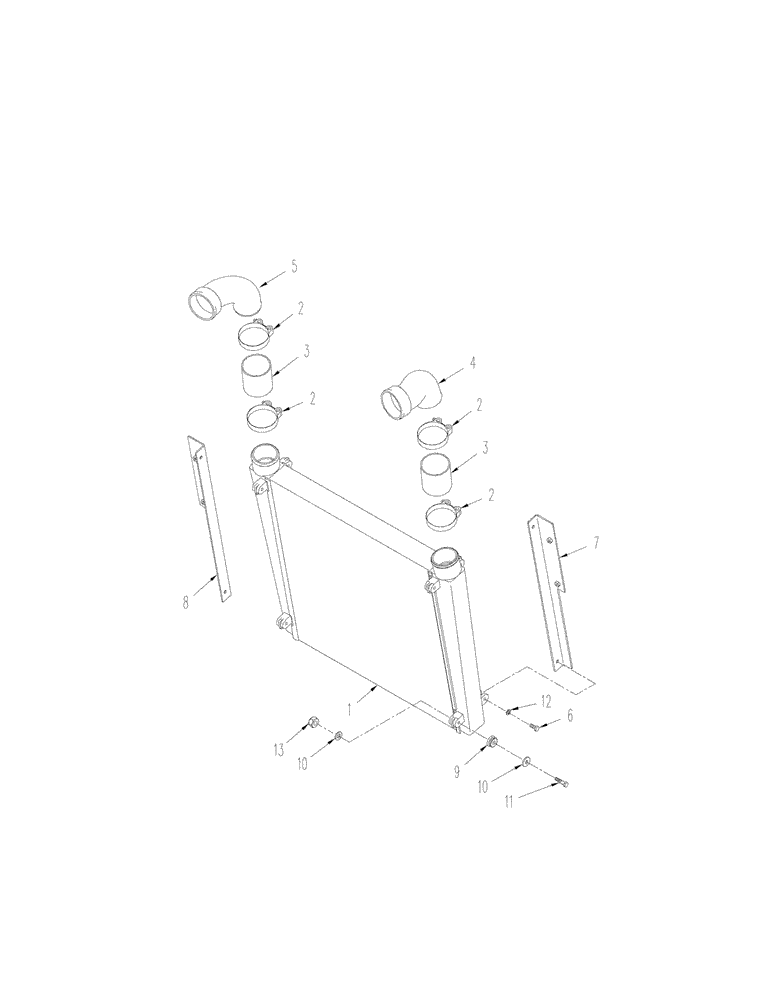

Запчасти Case IH STX275 (02-05[01]) - AIR COOLER MOUNTING, STX 275 (02) - ENGINE

1

437249A1

HEAT EXCHANGER

1шт.

2

L115549

CLAMP,69.85mm - 92.08mm

4шт.

3

329736A1

HOSE

Air Intake

2шт.

4

370114A1

ELBOW

Right-Hand

1шт.

5

370115A1

ELBOW

Left-Hand

1шт.

6

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

7

337053A2

ANGLE

Mounting, Right-Hand

1шт.

8

337054A2

ANGLE

Mounting, Left-Hand

1шт.

9

60-6650T1

RUBBER BUSHING

4шт.

10

495-81120

WASHER,.344" x 1 1/4" x .120"

11/32 x 1-1/4 x 1/8

4шт.

11

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
