Запчасти Case IH STX275 (09-42[01]) - AIR CONDITIONING - CLIMATE CONTROL UNIT, WITHOUT AUTO TEMP CONTROL (09) - CHASSIS

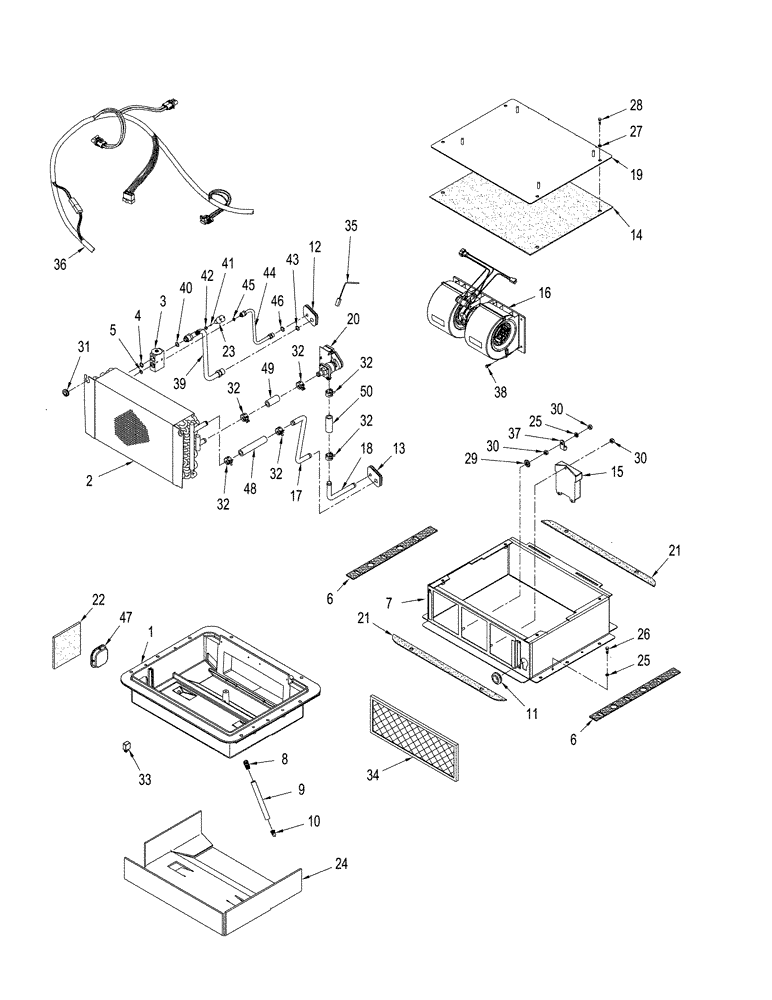

Схема запчастей Case IH STX275 - (09-42[01]) - AIR CONDITIONING - CLIMATE CONTROL UNIT, WITHOUT AUTO TEMP CONTROL (09) - CHASSIS
9
34
30
22
16
11
19
32
25
44
15
25
47
35
31
45
43
20
14
42
39
4
24
3
5
48
40
38
37
7
2
6
21
32
8
36
29
49
33
18
30
13
6
32
32
27
1
50
17
30
32
46
10
12
41
23
32
21
28
26

Артикул

Название

Примечание

Количество

87441017

AIR CONDITIONER

Inc. 1 - 50

1шт.

1

322996A1

BOX

Lower

1шт.

2

86990262

CORE

Core, Evaporator and Heater

1шт.

3

386535A1

VALVE

Expansion

1шт.

4

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

5

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

6

322994A1

GASKET,3mm Thk

Mounting

4шт.

7

87306776

CASE ASSY.

1шт.

8

1250522C3

FITTING

2шт.

9

1977334C1

HOSE

610 mm (24-1/8 in.), Cut From 198091C1

2шт.

10

109239C2

CHECK VALVE

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

87324951

GASKET,3mm Thk

1шт.

15

87429903

CONTROL UNIT

1шт.

16

323611A1

BLOWER

1шт.

16

84222526R

REMAN-BLOWER

STX275, STX325, Both CASE IH 4WD TRACTOR (AFTER S/N JEE0099501), Reman for New PN 323611A1

1шт.

16

84222526C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

Outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet

1шт.

19

87306495

COVER

1шт.

20

427356A1

CONTROL VALVE

1шт.

21

322995A1

GASKET,3mm Thk

4шт.

22

87306773

FOAM INSULATION

1шт.

23

284272A3

SWITCH, A/C LOW PRES

1шт.

24

324484A1

INSULATOR

1шт.

25

892-11006

LOCK WASHER,M6

5шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

6шт.

33

105849A1

RELAY

20 amp

1шт.

34

87409377

FILTER

Recirculated Air

1шт.

35

323016A1

SENSOR

1шт.

36

327308A1

HARNESS

1шт.

37

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

Inc. 40 - 43

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

41

1250594C2

CORE

Evaporator / Heater

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

43

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

44

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

Inc. 45 and 46

1шт.

45

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

46

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

47

368313A1

PLASTIC PLUG

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut from 97252CX

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Cut from 97252CX

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Cut from 97252CX

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 53
