Запчасти Case IH STX275 (09-39[02]) - AIR CONDITIONING SYSTEM, WITH ACCUSTEER (09) - CHASSIS

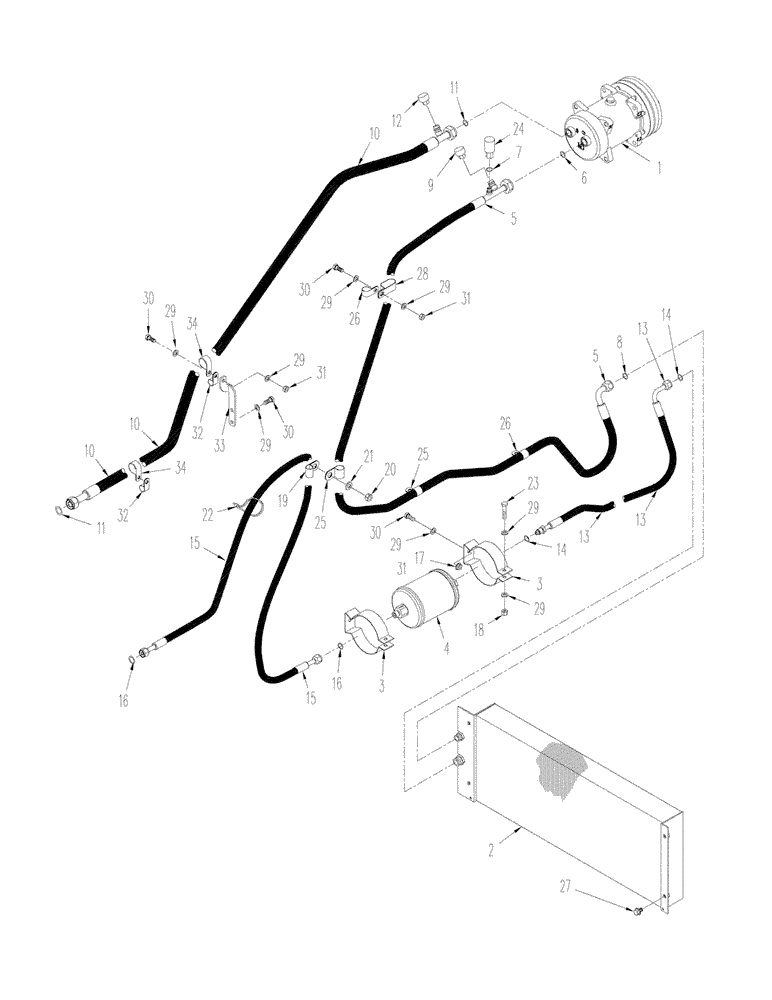

Схема запчастей Case IH STX275 - (09-39[02]) - AIR CONDITIONING SYSTEM, WITH ACCUSTEER (09) - CHASSIS
4
1
11
5
20
27
30
25
13
14
29
29
32
10
29
33
12
3
15
18
2
29
31
28
16
30
16
31
34
17
25
31
14
10
23
10
3
30
21
13
8
22
26
11
30
19
15
29
29
13
26
5
24
9
29
6
29
7
32
34

Артикул

Название

Примечание

Количество

1

86993462

AIRCOND. COMPRESSOR

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

STX275, STX325 both (AFTER S/N JEE0099501)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

2

87315600

CONDENSER

1шт.

3

433723A1

CLAMP

2шт.

4

295006A1

RECEIVER-DRYER

134a

1шт.

5

367641A1

A/C HOSE

Compressor To Condenser, Inc. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

122554A1

CAP

1шт.

10

378073A1

HOSE ASSY.

Cab To Compressor, Inc. 11 and 12

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

12

122553A1

CAP

1шт.

13

367642A1

HOSE ASSY.

Consenser To Dryer, Inc. 14

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

15

378072A1

HOSE ASSY.

Dryer To Cab, Inc. 16

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

17

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

23

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

24

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

25

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

26

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

28

R43926

CLAMP

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

32

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

33

398725A1

BRACKET

1шт.

34

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

Выбрано товаров: 39
