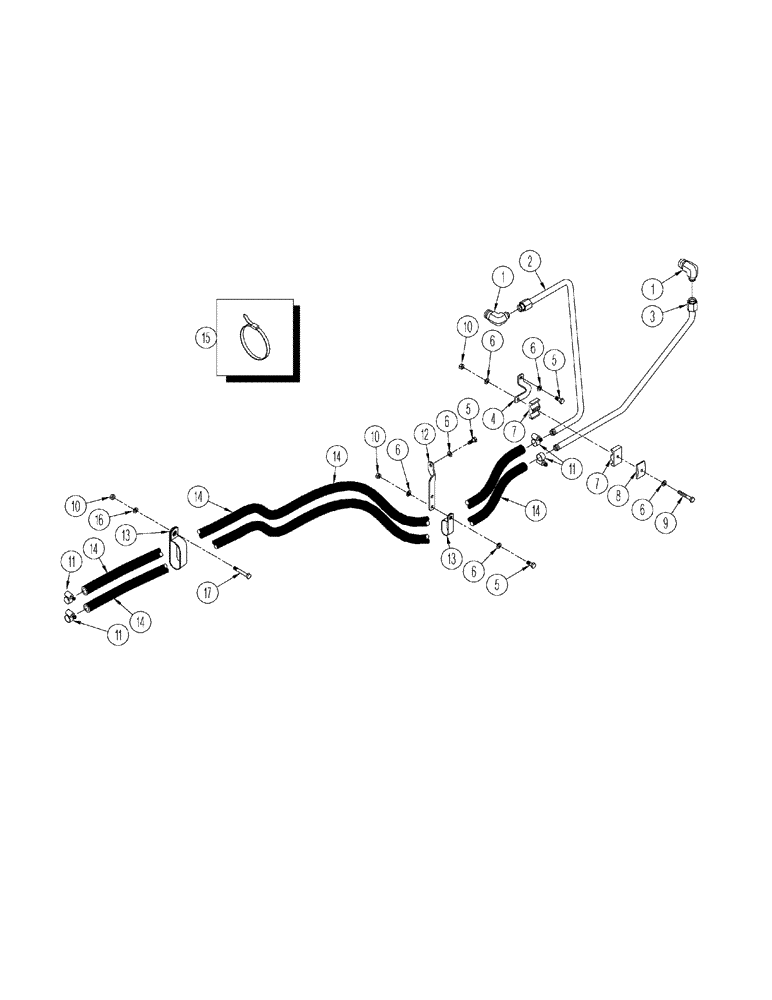

Запчасти Case IH STX275 (09-38[01]) - HEATER - HOSES, WITHOUT ACCUSTEER (09) - CHASSIS

1

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

5/8 tube x 3/4

2шт.

2

363288A1

TUBE,15.88 mm OD, 446.3, 198.7 mm Length

Supply

1шт.

3

363289A1

TUBE

Return

1шт.

4

363287A1

BRACKET

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

7

50-2531T1

CLAMP

2шт.

8

50-2532T1

PLATE

1шт.

9

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

11

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

12

364057A1

BRACKET

1шт.

13

R54363

CLAMP

3шт.

14

364159A1

HOSE,15.88 mm ID x 76.50 mm

Supply / Return

2шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
