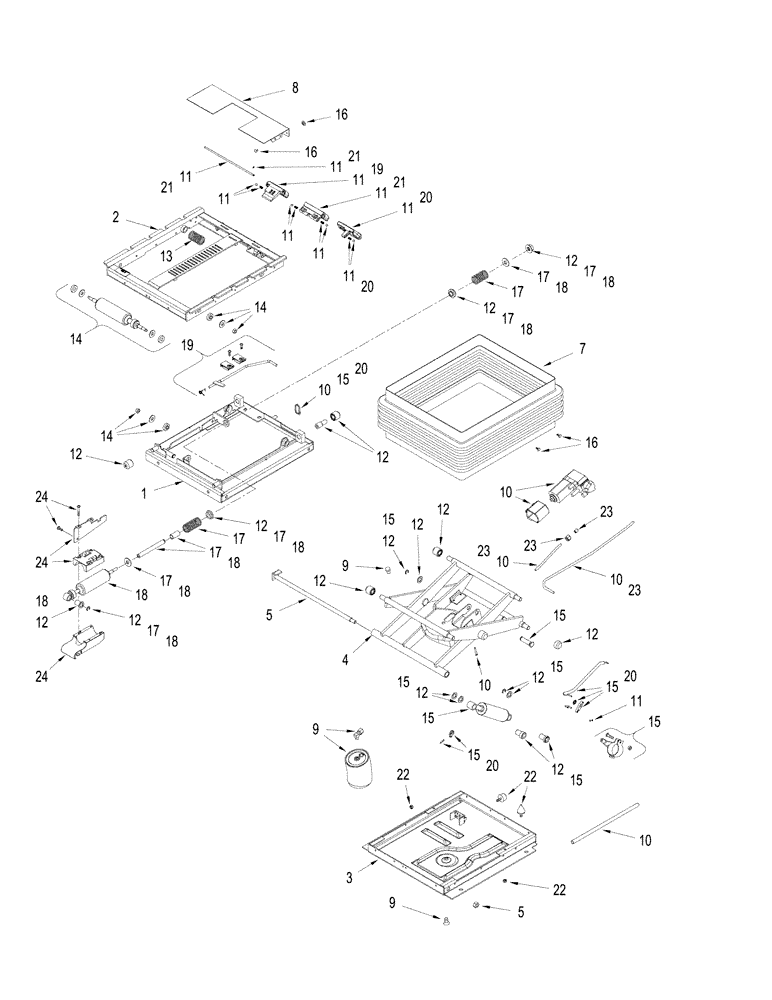

Запчасти Case IH STX275 (09-27) - SEAT - SUSPENSION ASSEMBLY (09) - CHASSIS

374353A2

PACKAGE,SERVICE

Inc. 1 - 25, Serial Range: -JEE0106701

1шт.

87347885

SERVICE KIT

Inc. 1 - 25, Start Serial: JEE0106701

1шт.

1

333273A1

HOUSING

Upper, Serial Range: JEE0106701-JEE0108962

1шт.

1

87395393

HOUSING

Upper, Start Serial: JEE0108962

1шт.

2

333274A2

ISOLATOR

Lateral Track, Serial Range: JEE0106701-JEE0108962

1шт.

2

87395392

HOUSING

, Start Serial: JEE0108962

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

302027A1

HARNESS

Suspension, Not Illustrated, Serial Range: -JEE0106701

1шт.

6

87347944

SERVICE KIT

Harness, Suspension, Not Illustrated, Start Serial: JEE0106701

1шт.

7

333278A1

BOOT

, Serial Range: -JEE0106701

1шт.

7

87347943

SERVICE KIT

, Start Serial: JEE0106701

1шт.

8

302029A2

PLATE

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

333280A1

PACKAGE,SERVICE

Air Compressor, Serial Range: -JEE0106701

1шт.

10

87347951

SERVICE KIT

Air Compressor

1шт.

11

373469A1

PACKAGE,SERVICE

Suspension Knob

1шт.

12

333283A2

KIT

Suspension Bearing And Rollers

1шт.

13

333284A1

PACKAGE,SERVICE

Lateral Isolator Spring

1шт.

14

333285A1

PACKAGE,SERVICE

Lateral Isolator Shock Absorber

1шт.

15

333286A1

PACKAGE,SERVICE

Suspension Shock Absorber, Serial Range: -JEE0106701

1шт.

15

87347950

SUSPENSION

Shock Absorber, Start Serial: JEE0106701

1шт.

16

333659A1

PACKAGE,SERVICE

Boot Pin

1шт.

17

333287A2

SPRING KIT

Fore and Aft Isolator Spring

1шт.

18

333288A2

PACKAGE,SERVICE

Fore and Aft Shock Absorber

1шт.

19

373470A2

KIT

Fore and Aft Isolator Control, Serial Range: JEE0106701-JEE0108962

1шт.

19

87395395

KIT

Fore and Aft Control, Start Serial: JEE0108962

1шт.

20

373472A1

PACKAGE,SERVICE

Suspension Shock Absorber Control, Serial Range: JEE0106701-JEE0108962

1шт.

20

447956A1

KIT

Suspension Shock Absorber Control, Start Serial: JEE0108962

1шт.

21

373473A1

PACKAGE,SERVICE

Lateral Isolator Control, Serial Range: JEE0106701-JEE0108962

1шт.

21

87395394

SERVICE KIT

Lateral Control, Start Serial: JEE0108962

1шт.

22

333295A1

BUMPER

Suspension Bumper

1шт.

23

333660A1

PACKAGE,SERVICE

Suspension Shock Cable, Serial Range: -JEE0106701

1шт.

23

87347955

CABLE

Suspension Shock, Start Serial: JEE0106701

1шт.

24

333296A1

SERVICE KIT

Fore and Aft Isolator Shock Block

1шт.
