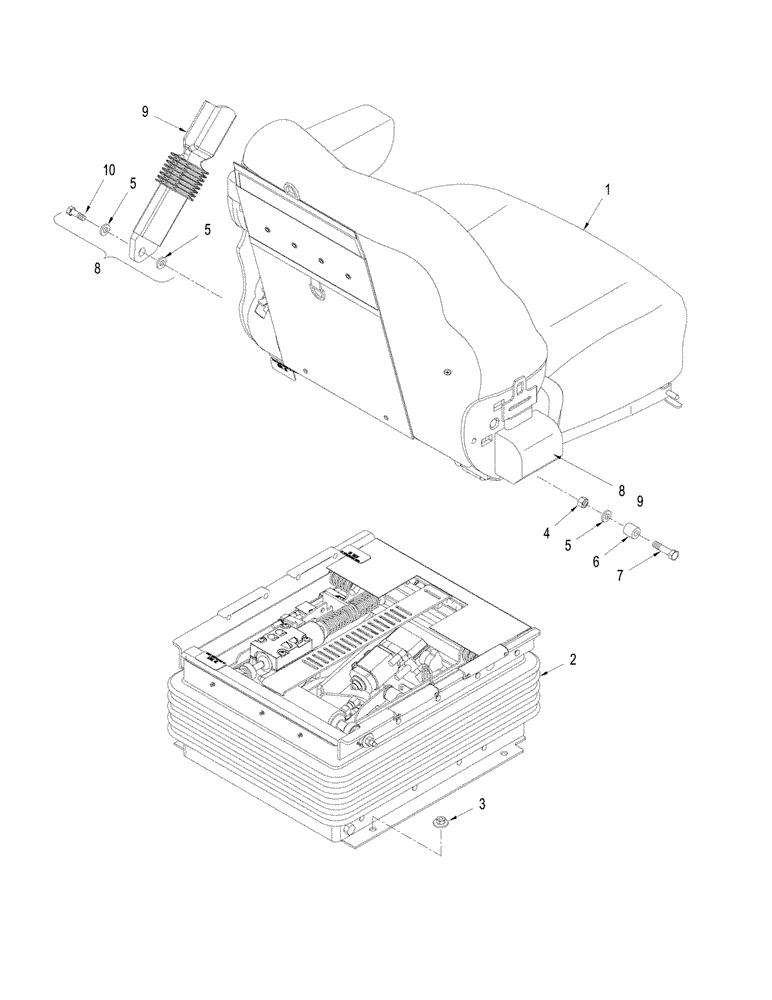

Запчасти Case IH STX275 (09-25) - SEAT (09) - CHASSIS

358202A2

SEAT ASSY.

Cloth, without Heat, Inc. 1, 2, 14, Serial Range: -JEE0106701

1шт.

87453068

SEAT ASSY.

Cloth, without Heat, Inc. 1, 2, 15, Start Serial: JEE0106701

1шт.

397519A2

SEAT ASSY.

Cloth, Heated, Inc. 1, 2, 14, Serial Range: JEE0102001-JEE0106701

1шт.

87453069

SEAT ASSY.

Cloth, Heated, Inc. 1, 2, 15, Start Serial: JEE0106701

1шт.

403213A2

SEAT ASSY.

Cloth, Heated, Semi-Active, Inc. 1, 2, 14, Serial Range: JEE0102001-JEE0106701

1шт.

87453071

SEAT ASSY.

Cloth, Heated, Semi-Active, Inc. 1, 2, 15, Start Serial: JEE0106701

1шт.

358203A2

SEAT ASSY.

Leather, Heated, Inc. 1, 2, Serial Range: -JEE0102001

1шт.

400163A2

SEAT ASSY.

Leather, Heated, Semi-Active, Inc. 1, 2, Start Serial: JEE0102001

1шт.

1

360319A2

CUSHION ASSY.

Cloth, without Heat, See Figure: 09-26, Serial Range: -JEE0106701

1шт.

1

87347872

SEAT ASSY.

Cloth, without Heat, See Figure: 09-26 (01), Start Serial: JEE0106701

1шт.

1

397525A1

CUSHION ASSY.

Cloth, Heated, See Figure: 09-26, Serial Range: -JEE0106701

1шт.

1

87347873

SEAT BACK

Cloth, Heated, See Figure: 09-26 (01), Start Serial: JEE0106701

1шт.

1

360321A2

CUSHION ASSY.

Leather, Heated, See Figure: 09-26

1шт.

2

374353A2

PACKAGE,SERVICE

Suspension, See Figure: 09-27 (01), Serial Range: -JEE0106701

1шт.

2

87347885

SERVICE KIT

Suspension, See Figure: 09-27 (01), Start Serial: JEE0106701

1шт.

2

400184A1

KIT

Suspension, Semi-Active, See Figure: 09-27 (01), Serial Range: JEE0102001-JEE0106701

1шт.

2

87347886

SUSPENSION

Semi-Active, See Figure: 09-27 (02), Start Serial: JEE0106701

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

.500" x 1.250" x .08" Thk

3шт.

6

87313413

TUBE SPACER

Steel, .875" x .50"

1шт.

7

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

8

333657A2

KIT

, Serial Range: -JEE0106701

1шт.

9

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

, Start Serial: JEE0106701

1шт.

10

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.
