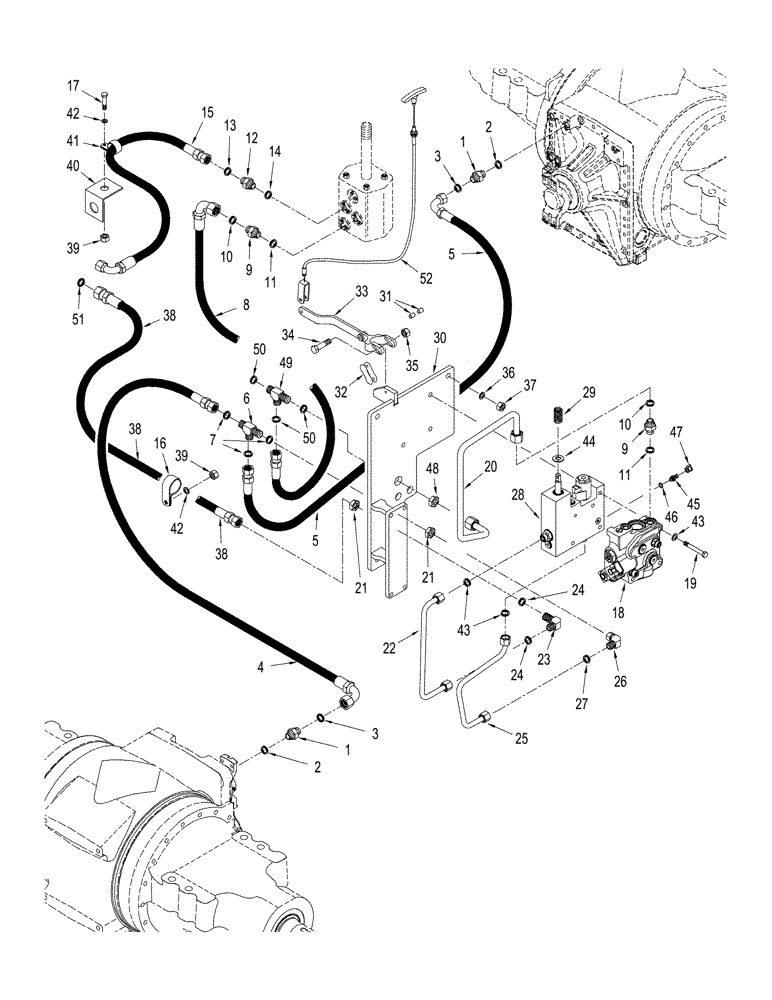

Запчасти Case IH STX275 (07-04[04]) - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK, WITH ACCUSTEER (07) - BRAKES

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 and 3

2шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

360200A2

HOSE ASSY.

1905 mm (75 in.)

1шт.

5

388391A1

HOSE ASSY.

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

392664A1

HOSE ASSY.

1638 mm (64-1/2 in.)

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10 and 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 13, 14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

360206A1

HOSE ASSY.

1288 mm (50 in.)

1шт.

16

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

18

411104A2

VALVE

Regulator, See Figure 08-39

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

1шт.

21

701-903

NUT,13/16" - 16

2шт.

22

449796A1

TUBE

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 24

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

449798A1

TUBE

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

319774A4

VALVE

Control, Tow Block, See Figure 08-40

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

1шт.

31

392748A1

SPACER

2шт.

32

242-4412

CHAIN LINK

1шт.

33

390918A3

ARM

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

CL 10, M6 x 1.0

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

327484A2

HOSE ASSY.

1033 mm (40-1/2 in.)

1шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

40

416102A1

SUPPORT

1шт.

41

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

43

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

44

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 45 and 47

1шт.

45

NSS

NOT SOLD SEPARAT

Fitting, Inc. 46

1шт.

46

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

47

H434163

DUST CAP

1шт.

48

701-919

BHD LOCK NUT,1" - 14

1шт.

49

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 50

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

52

349863A2

CABLE

Tow Valve, See Figure: 08-34 for Mounting & Parts

1шт.
