Запчасти Case IH STX275 (06-53) - POWER TAKEOFF - CLUTCH ASSEMBLY (06) - POWER TRAIN

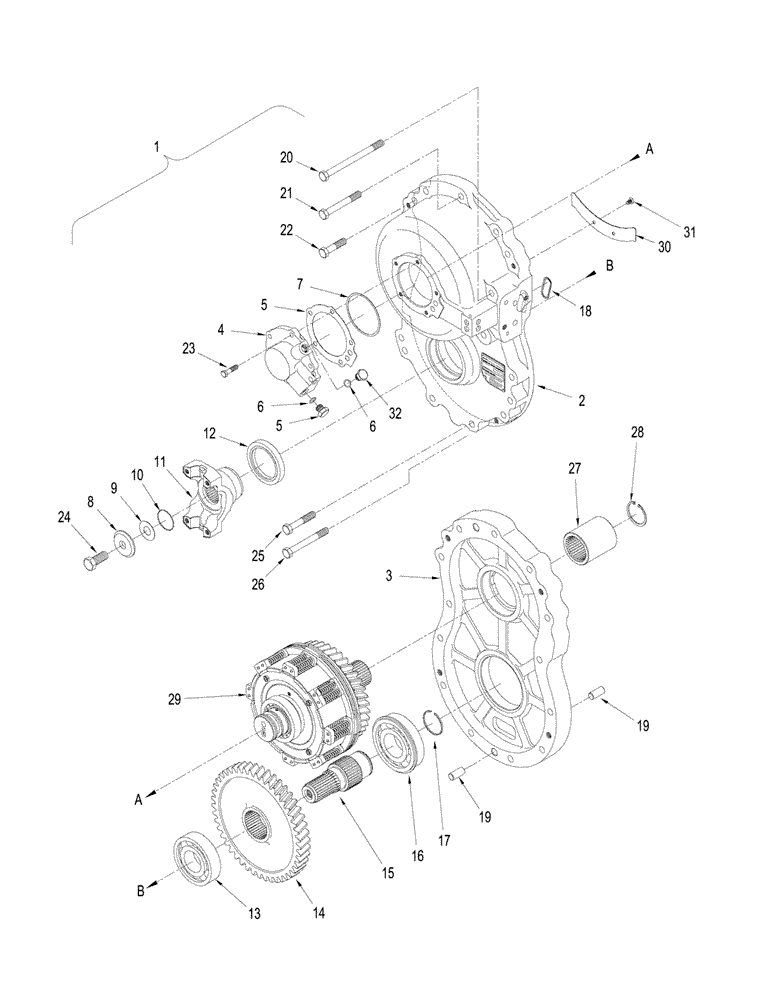

Схема запчастей Case IH STX275 - (06-53) - POWER TAKEOFF - CLUTCH ASSEMBLY (06) - POWER TRAIN
27
16
9
15
22
32
11
25
24
31
13
19
26
8
21
30
17
3
2
28
6
20
29
18
4
10
1
12
19
23
6
5
14
5
7

Артикул

Название

Примечание

Количество

1

87601931

PTO CLUTCH

Inc. 2 - 32

1шт.

87601931R

REMAN-CLUTCH ASSY

STX275, STX325 both (AFTER S/N JEE0099501)

1шт.

87601931C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

2

375550A1

HOUSING

Rear

1шт.

3

87601932

HOUSING

Front

1шт.

4

375552A1

HOUSING

PTO Servo

1шт.

5

375553A1

GASKET

PTO Servo

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

S9910S00F

SHIM,0.1mm Thk

(.004")

1шт.

7

S9920S00F

SHIM,0.3mm Thk

(.012")

1шт.

7

S9930S00F

SHIM,0.5mm Thk

(.020")

1шт.

7

S9940S00F

SHIM,0.7mm Thk

(.027")

1шт.

8

S8860S00F

THRUST WASHER

1шт.

9

S9950S00F

SHIM,0.1mm Thk

(0.10 mm)

1шт.

9

S9960S00F

SHIM,0.31mm Thk

(0.30 mm)

1шт.

9

S9970S00F

SHIM,0.51mm Thk

(0.51 mm)

1шт.

9

S9980S00F

SHIM,0.71mm Thk

(0.7 mm)

1шт.

10

375512A1

O-RING

1шт.

11

398447A1

YOKE

UNIVERSAL JOINT YOKE PTO, 6C

1шт.

12

S8820S00F

OIL SEAL

1шт.

13

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

1шт.

14

375554A1

GEAR

Driven

1шт.

15

375555A1

SHAFT

Output

1шт.

16

375559A1

BEARING, BALL

1шт.

17

375560A1

RING, SNAP

RING SNAP

1шт.

18

375556A1

GASKET

1шт.

19

427530A1

DOWEL,14mm OD x 31mm L

4шт.

20

SM8124208

BOLT

2шт.

21

514-846

BOLT,Hex, M12 x 1.25 x 90mm, Cl 8.8

4шт.

22

514-855

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

23

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

24

514-1021

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

25

514-847

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

26

514-854

BOLT,Hex, M12 x 1.25 x 100mm, Cl 8.8, Full Thd

7шт.

27

428660A1

SLEEVE

1шт.

Used on Power Shift Models

1шт.

28

800-2147

SNAP RING,M47, Int

1шт.

Used on Power Shift Models

1шт.

29

NSS

NOT SOLD SEPARAT

Shaft, Input, See Figure 06-54

1шт.

30

376972A1

TROUGH

1шт.

31

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

32

220064A1

PLUG,M14 x 1.5, ORB

Incl. 6

9шт.

Выбрано товаров: 42
