Запчасти Case IH STX275 (06-15) - MANUAL SHIFT TRANSMISSION - COVERS AND YOKES (06) - POWER TRAIN

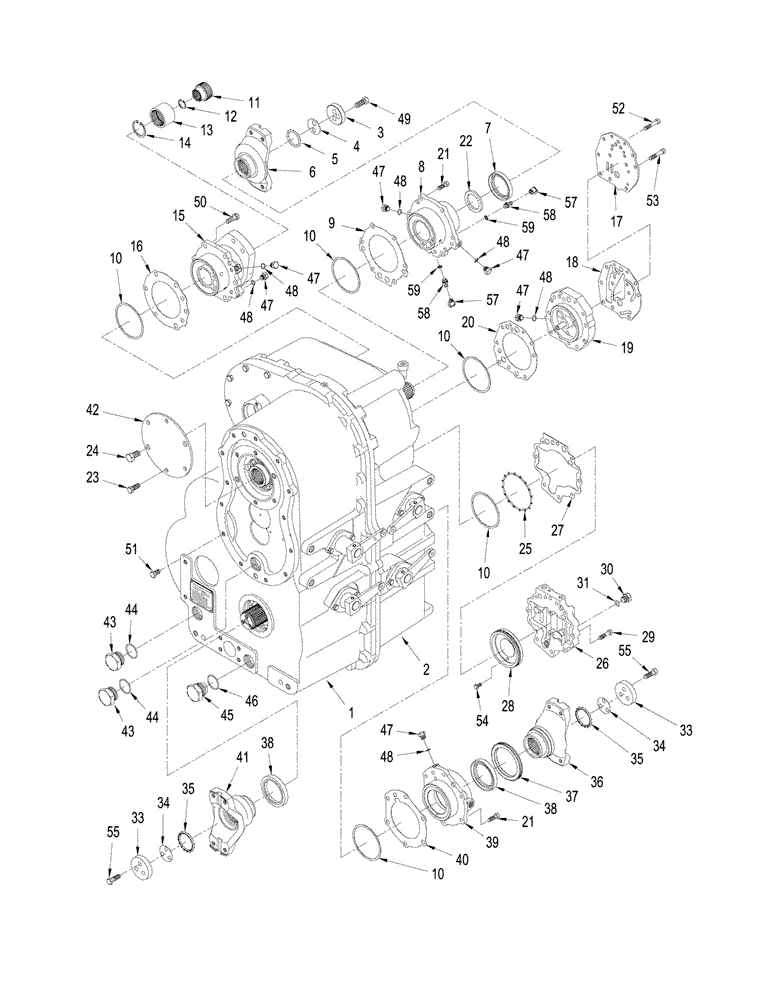

Схема запчастей Case IH STX275 - (06-15) - MANUAL SHIFT TRANSMISSION - COVERS AND YOKES (06) - POWER TRAIN
50
33
44
26
18
47
5
21
4
21
48
52
3
38
8
54
11
10
55
46
35
47
59
39
51
43
14
40
48
9
24
48
10
1
16
55
48
20
23
53
10
47
36
6
2
43
33
13
10
35
19
27
38
42
17
30
37
28
7
29
49
47
48
41
31
58
12
59
15
47
34
22
57
47
25
34
44
48
10
45
58
57

Артикул

Название

Примечание

Количество

1

427538A1

HOUSING

Rear

1шт.

2

427588A1

HOUSING

Front

1шт.

3

427539A1

RETAINING PLATE

1шт.

4

427560A1

SHIM,0.1mm Thk

(0.004")

1шт.

4

427561A1

SHIM,0.3mm Thk

(0.012")

1шт.

4

427562A1

SHIM,0.7mm Thk

(0.028")

1шт.

5

428162A1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

6

373133A1

COUPLING FLANGE

Input, 7C

1шт.

STX275

1шт.

6

373136A1

COUPLING FLANGE

Input, 8C

1шт.

STX325

1шт.

7

428159A1

OIL SEAL

1шт.

8

428098A1

RETAINER

Input

1шт.

9

428099A1

GASKET

1шт.

10

427564A1

SHIM,0.1mm Thk

(0.004")

1шт.

10

427565A1

SHIM,0.15mm Thk

(0.006")

1шт.

10

427566A1

SHIM,0.3mm Thk

(0.012")

1шт.

10

427567A1

SHIM,0.5mm Thk

(0.020")

1шт.

10

427568A1

SHIM,0.7mm Thk

(0.028")

1шт.

11

362566A1

ADAPTER

Pump

1шт.

12

800-2128

SNAP RING,M28, Int

1шт.

13

362567A1

COUPLING

1шт.

14

800-2150

SNAP RING,M50, Int

1шт.

15

428126A1

RETAINER

Second Shaft

1шт.

16

428100A1

GASKET

Second Shaft

1шт.

17

427592A1

RETAINING PLATE

1шт.

18

427591A1

GASKET

1шт.

19

427557A1

RETAINER

Third Shaft

1шт.

20

427582A1

GASKET

Third Shaft

1шт.

21

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

22

427569A1

WASHER

1шт.

23

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

24

427559A1

BOLT

2шт.

25

428149A1

O-RING

1шт.

26

427586A1

PLATE ASSY.

Ditch

1шт.

27

427583A1

GASKET

1шт.

28

427556A1

RETAINER

Fourth Shaft

1шт.

29

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

5шт.

30

220066A1

PLUG,M18 x 1.5, ORB

Incl. 31

1шт.

31

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

32

800-2116

SNAP RING,M16, Int

1шт.

33

427515A1

RETAINING PLATE

2шт.

34

427517A1

SHIM,0.1mm Thk

(0.004")

1шт.

34

427519A1

SHIM,0.3mm Thk

(0.012")

1шт.

35

428165A1

O-RING

2шт.

36

427552A1

YOKE

Output, 7C

1шт.

STX275

1шт.

36

427551A1

YOKE

Output, 8C

1шт.

STX325

1шт.

37

427549A1

RING

1шт.

38

427514A1

OIL SEAL

2шт.

39

427563A1

RETAINER

Output

1шт.

40

427547A1

GASKET

1шт.

41

373135A1

COUPLING FLANGE

Output, 7C

1шт.

STX275

1шт.

41

373138A1

COUPLING FLANGE

Output, 8C

1шт.

STX325

1шт.

42

427558A1

COVER

Power Takeoff

1шт.

43

303493A1

PLUG,Hex Soc, M42 x 2, ORB

Inc. 44

2шт.

44

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

45

375456A1

PLUG, DRAIN

M42, Inc. 46

1шт.

46

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

47

220064A1

PLUG,M14 x 1.5, ORB

Incl. 48

3шт.

48

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

49

428181A1

BOLT

3шт.

50

428180A1

BOLT

M10 x 35

6шт.

51

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

52

514-738

BOLT,Hex, M10 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

53

514-720

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd

4шт.

54

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

55

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

56

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 57 - 59

2шт.

57

H434163

DUST CAP

1шт.

58

NSS

NOT SOLD SEPARAT

Fitting

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 76
