Запчасти Case IH STX275 (06-11[01]) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, WITHOUT ACCUSTEER, BSN JEE0104001 (06) - POWER TRAIN

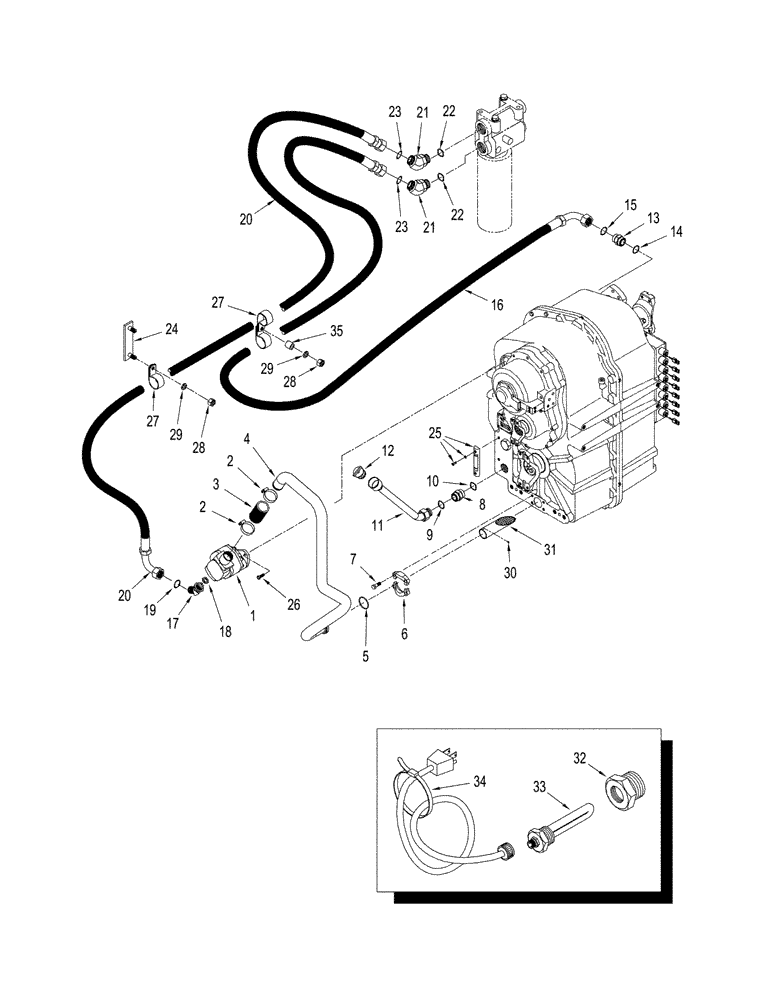

Схема запчастей Case IH STX275 - (06-11[01]) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, WITHOUT ACCUSTEER, BSN JEE0104001 (06) - POWER TRAIN
15
6
8
5
34
27
26
1
22
29
7
9
2
20
28
11
20
28
14
21
23
32
30
35
29
31
13
18
19
22
12
3
33
24
21
17
4
2
25
16
23
10
27

Артикул

Название

Примечание

Количество

1

370546A1

PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

Reman for New PN 370546A1

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 1-4568

1шт.

4

408581A1

TUBE

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

8

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 8 and 9

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

11

403390A1

TUBE

Transmission Fill

1шт.

12

325737A1

CAP

1шт.

13

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Inc. 14 and 15

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

365378A1

HOSE ASSY.,25.4mm ID x 1429mm L

Outlet, 1429 mm (56 in.)

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18 and 19

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

20

365377A2

HOSE ASSY.,25.4mm ID x 2650mm L

Supply, 2650 mm (104 in.)

1шт.

21

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 22 and 23

2шт.

22

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

324089A1

PLATE ASSY.

2шт.

25

L116247

GAUGE

Inc. Hardware

1шт.

26

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

6шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

30

S14701960

BALL,3.968mm OD

Steel

1шт.

31

370551A1

TUBE

1шт.

186135A1

KIT

Transmission Heater, Inc. 32 - 34

1шт.

32

367930A1

ADAPTER,M42 x 2 NPT

1шт.

33

385486A1

HEATER ASSY.

With Cord Set, 300 W

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

35

90-7586T1

SPACER

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 38
