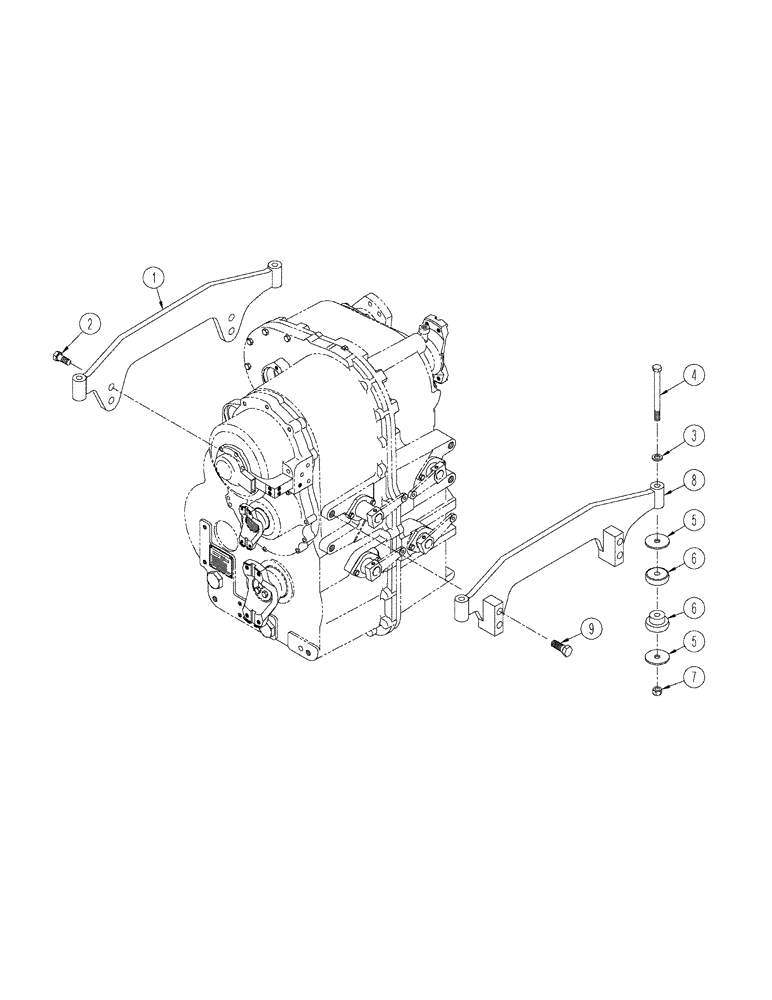

Запчасти Case IH STX275 (06-08) - TRANSMISSION MOUNTING, MANUAL SHIFT TRANSMISSION (06) - POWER TRAIN

1

388851A1

PLATE

Mounting

1шт.

2

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

4

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

4шт.

5

379610A1

WASHER

8шт.

6

227810A1

RUBBER MOUNTING

4шт.

7

832-10422

NUT,M22 x 2.5, Cl 8

4шт.

8

397581A1

PLATE

Mounting

1шт.

9

827-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

4шт.
