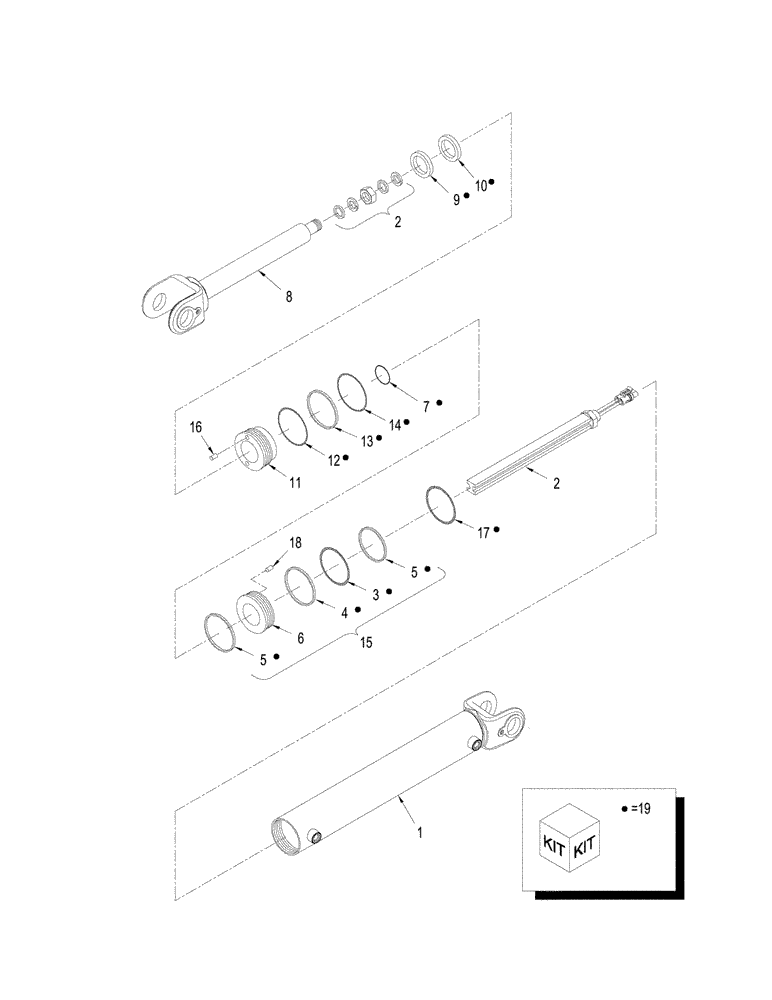

Запчасти Case IH STX275 (05-11) - CYLINDER ASSY - ARTICULATION, WITH SENSOR (05) - STEERING

87418550

CYLINDER,Double Acting, 38.1mm Rod, 460.76mm Stroke

Inc. 1 - 17

1шт.

1

87436217

CASE ASSY.

1шт.

2

87407428

SENSOR

Rod

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

6

440645A1

JACK PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

87436216

SHAFT ASSY.

Piston Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

U-Cup

1шт.

11

387734A1

CYLINDER END CAP

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

440643A1

PISTON ASSY.

with Seals, Inc. 3 - 6

1шт.

16

NSS

NOT SOLD SEPARAT

Screw, Set

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

445440A1

SET SCREW

Set Screw

1шт.

19

387735A1

SEAL KIT

Inc. 3 - 5, 7, 9, 10, 12 - 14 & 17

1шт.
