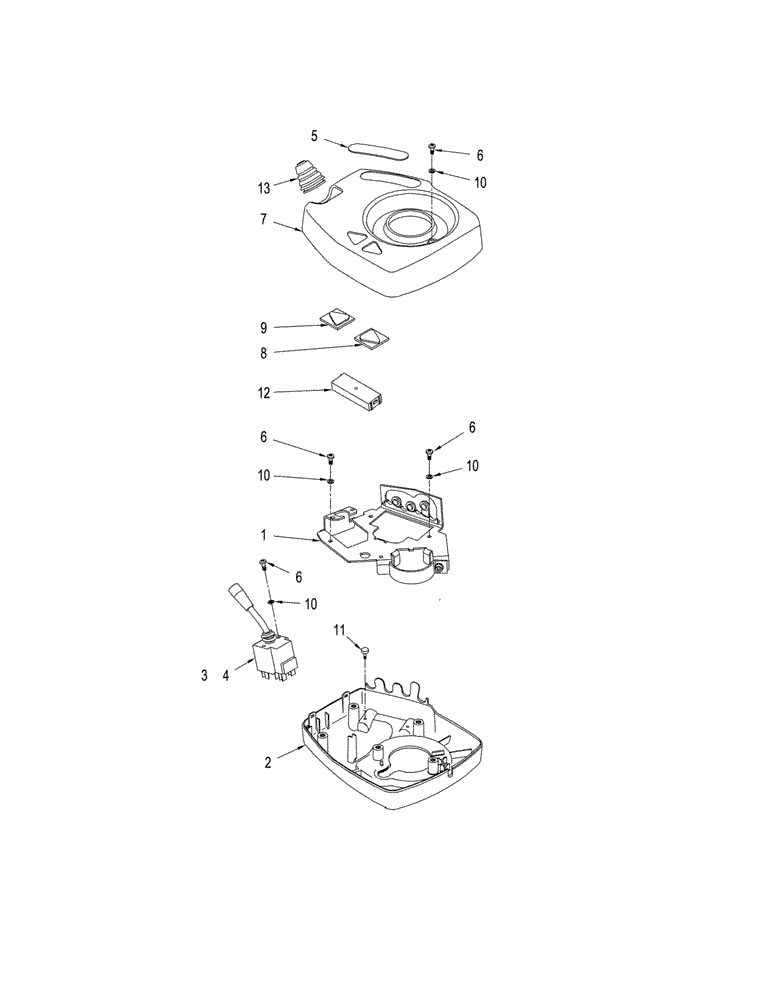

Запчасти Case IH STX275 (05-09) - TRANSMISSION CONTROL ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION (05) - STEERING

414332A1

CONTROL

Inc. 1 - 3, 5 - 19

1шт.

With Self Cancel

1шт.

414331A1

CONTROL

Inc. 1, 2, 4 - 19

1шт.

Without Self Cancel

1шт.

1

325362A1

CHASSIS

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Lower

1шт.

3

284777A1

SWITCH

1шт.

With Self Cancel

1шт.

4

284776A1

SWITCH

1шт.

Without Self Cancel

1шт.

5

NSS

NOT SOLD SEPARAT

Plate

1шт.

6

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

7шт.

7

NSS

NOT SOLD SEPARAT

Housing, Upper

1шт.

8

303466A1

SYMBOLS

SYMBOL RH

1шт.

9

303467A1

SYMBOLS

SYMBOL LH

1шт.

10

892-11004

LOCK WASHER,M4

7шт.

11

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

12

303465A2

LAMP,12V, 2W

1шт.

13

325068A1

BELLOWS

1шт.
