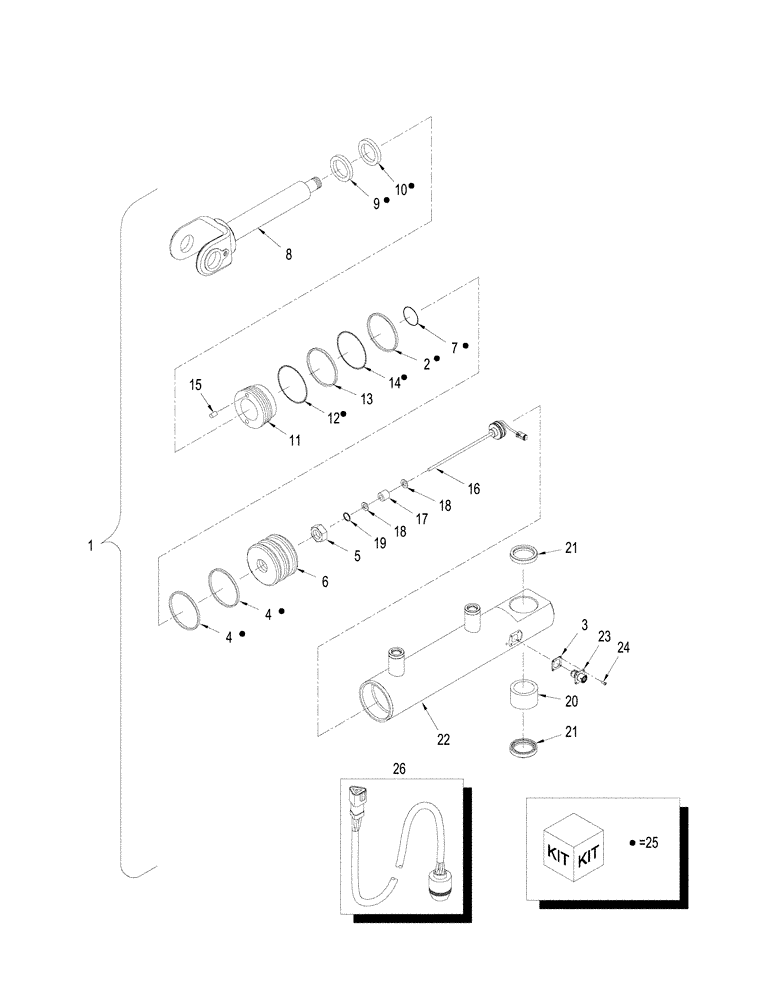

Запчасти Case IH STX275 (05-03[04]) - CYLINDER ASSY - STEERING, WITH SENSOR (05) - STEERING

1

366227A2

CYLINDER

Replaced By 87529572

1шт.

1

87529572

CYLINDER

Inc. 2 - 22

1шт.

When Ordering 87529572 Cylinder to Replace 366227A2 Cylinder, Also Order 87378214 Sensor Adaptor Harness.

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

3

384819A1

GASKET

Used With 366227A2

1шт.

3

87364409

GASKET

1шт.

4

87397844

SPACER

1шт.

5

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

6

87397769

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

87397771

SHAFT

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Retainer

1шт.

11

87397770

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Screw, 1/4"-20 NC x 3/8"

1шт.

16

384731A2

SENSOR

Rod (for 366227A2 Cylinder)

1шт.

16

87552134

SENSOR

Rod

1шт.

17

87397843

MAGNET

Magnet

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

2шт.

19

87532453

SNAP RING

Retainer

1шт.

20

388124A1

BUSHING

1шт.

21

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

2шт.

22

87397772

CASE

1шт.

23

225234C1

ELEC CONNECTOR,Male, 3 Pin

Socket, 3 Pin, Used With 366227A2

1шт.

23

87451958

ELEC CONNECTOR,Female

Socket, 4 Pin

1шт.

24

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

Used With 366227A2

1шт.

24

87022296

SCREW,Phillips Drive, Pan HD, M3 x 8mm, Cl 4.8

4шт.

25

387790A1

SEAL KIT

Inc. 2, 4, 7, 9, 10, 12 - 14 & 25

1шт.

26

87378214

WIRE HARNESS

Sensor Adaptor

1шт.

When Ordering 87529572 Cylinder to Replace 366227A2 Cylinder, Also Order 87378214 Sensor Adaptor Harness.

1шт.
