(05-03[02]) - CYLINDER ASSY - ARTICULATION, WITH SENSOR

Запчасти Case IH STX275 (05-03[02]) - CYLINDER ASSY - ARTICULATION, WITH SENSOR (05) - STEERING

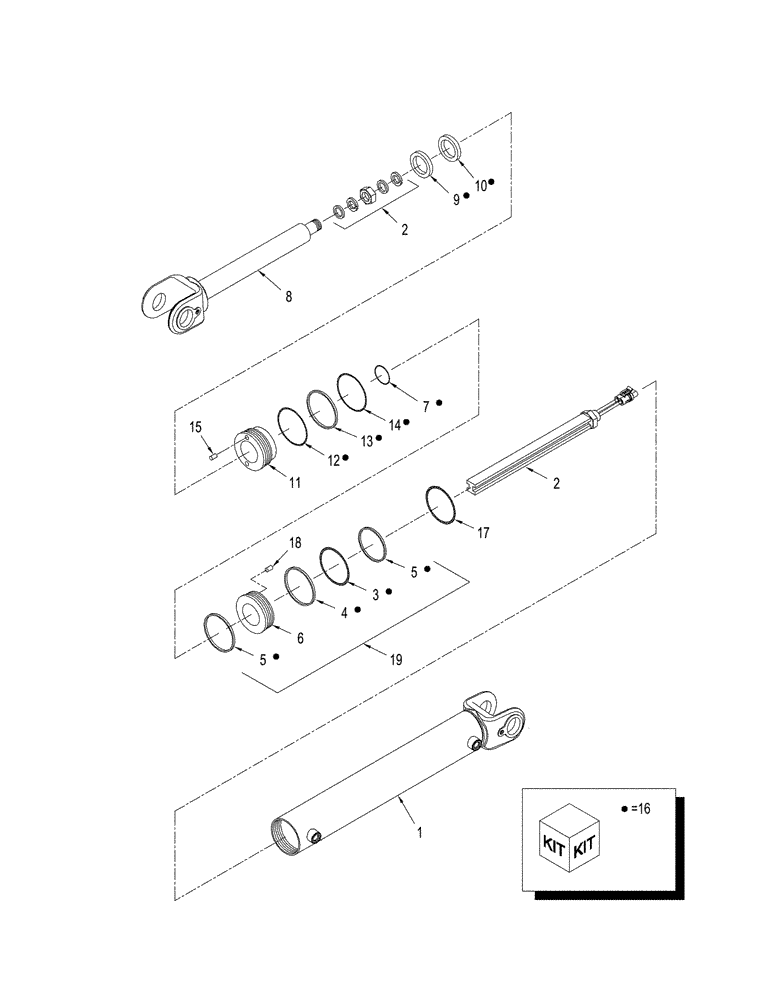

Схема запчастей Case IH STX275 - (05-03[02]) - CYLINDER ASSY - ARTICULATION, WITH SENSOR (05) - STEERING
3
17
16
16
7
16
16
16
16
4
16
9
16
2
12
18
10
11
14
19
16
1
16
8
13
2
6
16
5
5
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87418550

CYLINDER,Double Acting, 38.1mm Rod, 460.76mm Stroke

Inc. 1 - 17, Serial Range: -JEE0106701

1шт.

87429546

CYLINDER,Double Acting, 38.1mm Rod, 460.76mm Stroke

Inc. 1 - 17, Start Serial: JEE0106701

1шт.

1

87436217

CASE ASSY.

Barrel

1шт.

2

87407428

SENSOR

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

6

440645A1

JACK PISTON

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

87436216

SHAFT ASSY.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

11

387734A1

CYLINDER END CAP

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Screw, Set

1шт.

16

387735A1

SEAL KIT

Inc. 3 - 5, 7, 9, 10, 12 - 14

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

445440A1

SET SCREW

1шт.

19

440643A1

PISTON ASSY.

With Seals, Inc. 3 - 6

1шт.
