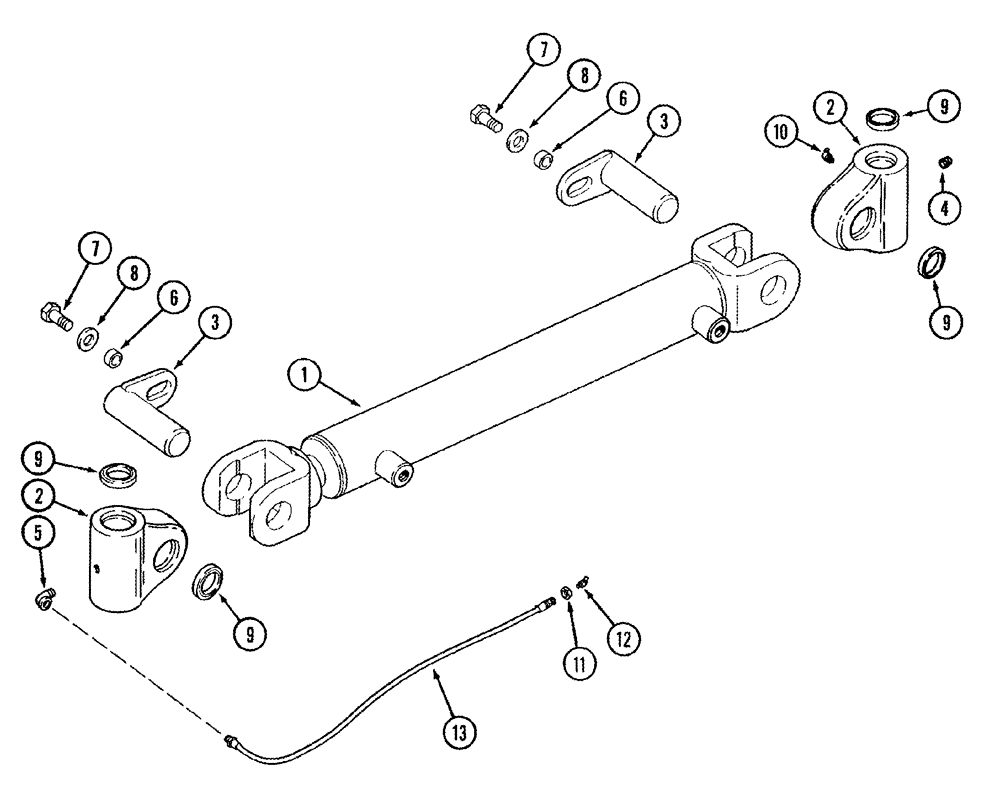

Запчасти Case IH STX275 (05-02) - CYLINDER MOUNTING - ARTICULATION (05) - STEERING

410661A1

CYLINDER

Without Sensor, Inc. 1 - 13

1шт.

377344A2

CYLINDER

With Sensor, Inc. 1 - 13, Serial Range: -JEE0106701

1шт.

1

87423707

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 451mm Stroke

Without Sensor, See Figure 05-03 (01)

1шт.

1

87418550

CYLINDER,Double Acting, 38.1mm Rod, 460.76mm Stroke

With Sensor, See Figure: 05-03 (02), Serial Range: -JEE0106701

1шт.

1

87429546

CYLINDER,Double Acting, 38.1mm Rod, 460.76mm Stroke

With Sensor, See Figure 05-03 (02), Start Serial: JEE0106701

1шт.

2

410700A1

KNUCKLE JOINT

2шт.

3

281673A2

PIN

2шт.

4

86637724

PLUG,1/8" - 27 NPT

2шт.

5

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

8шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

11

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

13

937781R92

HOSE,3.02mm ID x 686mm L

1шт.
