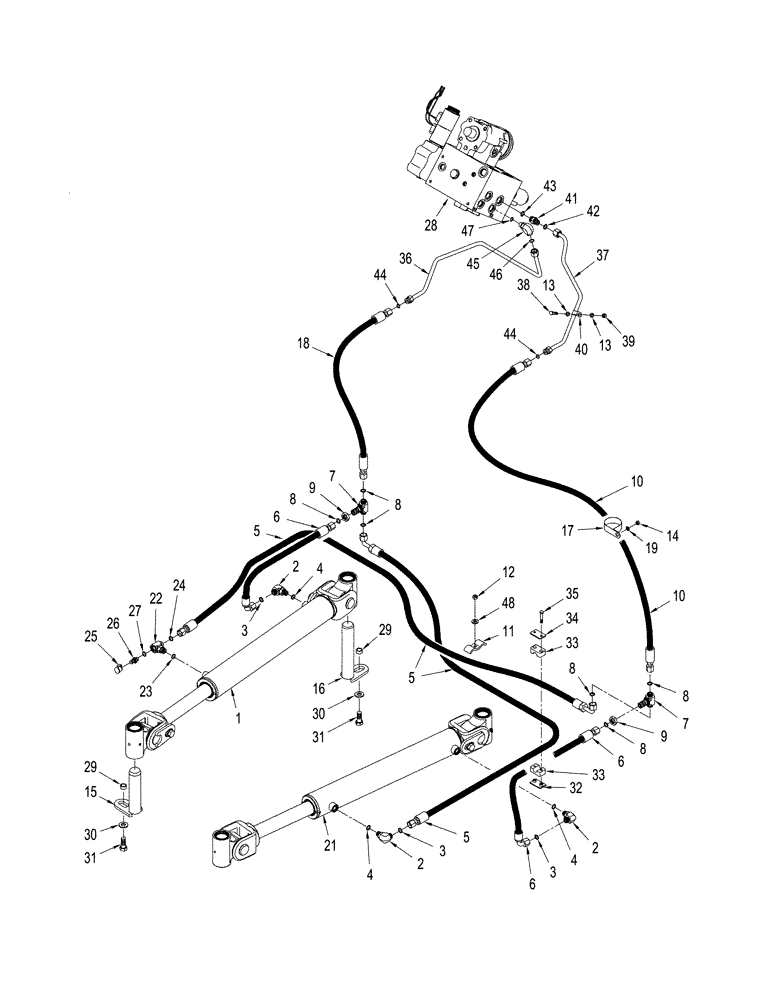

Запчасти Case IH STX275 (05-01[02]) - HYDRAULICS - REAR STEERING, WITH ACCUSTEER (05) - STEERING

1

410661A1

CYLINDER

Articulation, Without Sensor, See Figure 05-02

1шт.

2

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 and 4

3шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

352114A1

HOSE

1460 mm (57 in.)

2шт.

6

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2 in.)

2шт.

7

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 8

2шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

9

701-903

NUT,13/16" - 16

2шт.

10

393607A1

HOSE

1933 mm (76 in.)

2шт.

11

242563A1

CLAMP

1шт.

12

829-1412

NUT,M12, Cl 10.9

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

15

256295A1

PIN

2шт.

16

360493A1

PIN

2шт.

17

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

18

388474A1

HOSE

1232 mm (48-1/2 in.)

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

21

377344A2

CYLINDER

Articulation, With Sensor, See Figure 05-02

1шт.

22

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 orb, Inc. 23 and 24

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 25 - 27

1шт.

25

H434163

DUST CAP

1шт.

26

NSS

NOT SOLD SEPARAT

Fitting

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

28

373378A3

VALVE, CONTROL

Steering, See Figure 05-04 (02)

1шт.

29

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

30

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

31

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

32

399431A1

PLATE

2шт.

33

399102A1

CLAMP

4шт.

34

279519A1

LARGE PLATE

PLATE, LARGE

2шт.

35

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

36

417282A1

TUBE

1шт.

37

417280A1

TUBE

1шт.

39

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

40

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

41

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 42 and 43

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 46 and 47

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

892-11012

LOCK WASHER,M12

1шт.

38

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.
