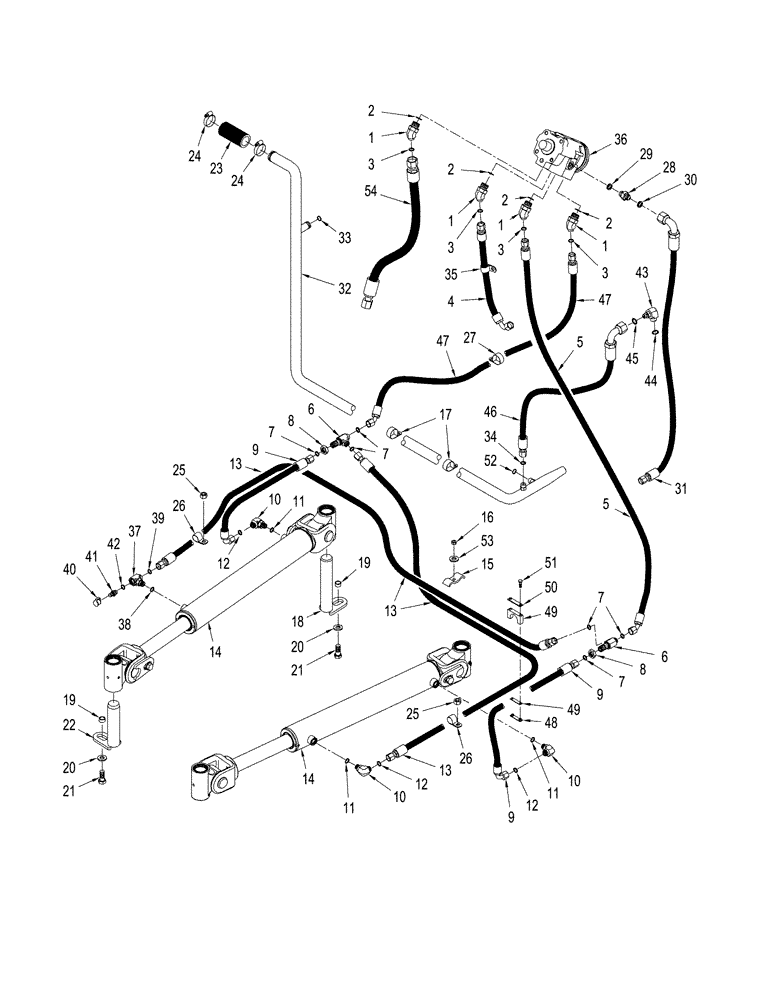

Запчасти Case IH STX275 (05-01[01]) - HYDRAULICS - STEERING, WITHOUT ACCUSTEER (05) - STEERING

1

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1 fc sl x 22 or, Inc. 2 and 3

4шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

4

327473A2

HOSE

1727 mm (68 in.), Supply, From Priority Valve

1шт.

5

394226A1

HOSE

2311 mm (91 in.), Right-Hand Steering Cylinder

1шт.

6

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 7

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

8

701-903

NUT,13/16" - 16

2шт.

9

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2 in.)

2шт.

10

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 11 and 12

3шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

13

352114A1

HOSE

1460 mm (57 in.)

2шт.

14

410661A1

CYLINDER

Articulation, See Figure 05-02

2шт.

15

242563A1

CLAMP

1шт.

16

829-1412

NUT,M12, Cl 10.9

1шт.

17

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

18

360493A1

PIN

2шт.

19

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

21

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

22

256295A1

PIN

2шт.

23

1-4571

HOSE

114 mm (4-1/2 in.), Cut From 1-4482T1

1шт.

24

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

27

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

28

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 29 and 30

1шт.

29

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

327474A1

HOSE

1650 mm (65 in.), Load Sense from Priority Valve

1шт.

32

410907A1

TUBE

Return

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

36

373376A2

VALVE, CONTROL

Steering, See Figure 05-04 (01)

1шт.

37

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 or, Inc. 38 and 39

1шт.

38

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 40 - 42

1шт.

40

H434163

DUST CAP

1шт.

41

NSS

NOT SOLD SEPARAT

Fitting

1шт.

42

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

43

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 44 and 45

1шт.

44

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

46

327471A1

HOSE

724 mm (28 in.)

1шт.

47

408449A1

HOSE

2807 mm (110 1/2 in.), Left-Hand Steering Cylinder

1шт.

48

399431A1

PLATE

2шт.

49

399102A1

CLAMP

4шт.

50

279519A1

LARGE PLATE

PLATE, LARGE

1шт.

51

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

892-11012

LOCK WASHER,M12

1шт.

54

390574A1

HOSE ASSY.

584 mm (23 in), Return, Steering Control to Piston Pump

1шт.
