Запчасти Case IH STX275 (04-28) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE, WITHOUT THREE POINT HITCH (04) - ELECTRICAL SYSTEMS

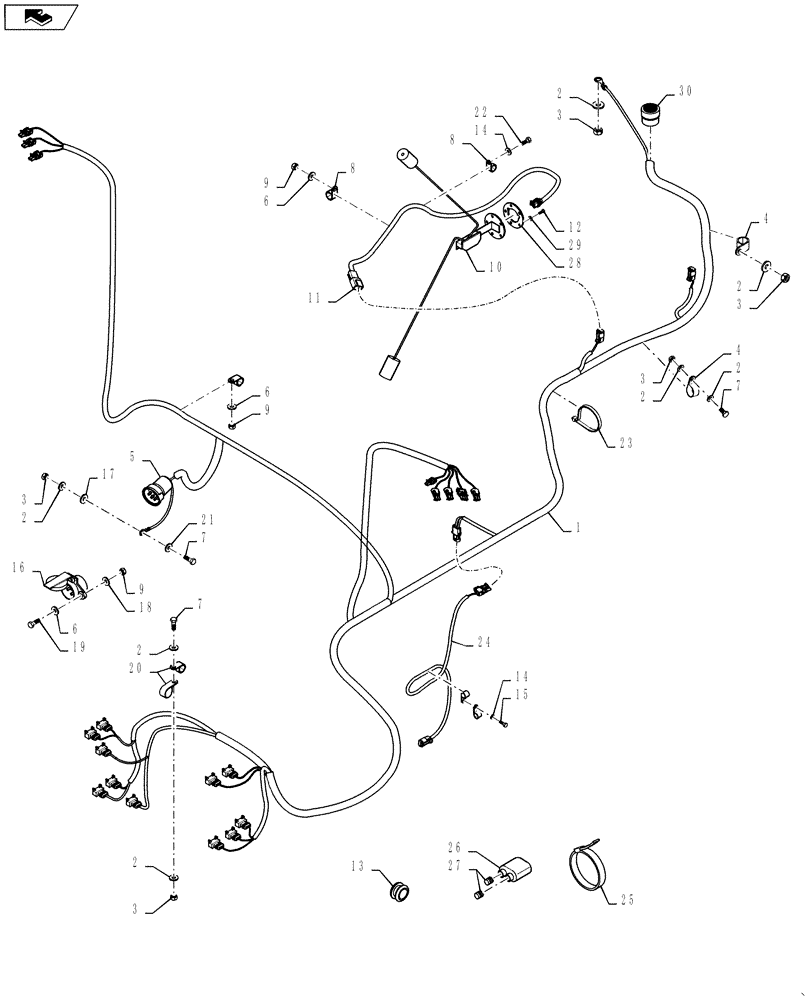

Схема запчастей Case IH STX275 - (04-28) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE, WITHOUT THREE POINT HITCH (04) - ELECTRICAL SYSTEMS
2
13
29
3
26
20
7
12
home
8
6
15
2
9
6
18
14
17
4
10
1
4
2
3
2
28
19
22
16
25
3
7
11
8
5
23
14
7
2
30
21
3
6
2
2
3
9
9
24
27

Артикул

Название

Примечание

Количество

1

429849A1

HARNESS

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

3шт.

5

481849C1

PROTECTIVE COVER

Connector

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

10

87434677

SENDER UNIT

Fuel Level, Incl 28

1шт.

11

87438650

HARNESS

Jumper Fuel Sensor

1шт.

12

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

6шт.

13

328265A1

GROMMET

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

16

121645C1

MULTIPOLE CONNECTOR,7 Pin

1шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

20

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

21

892-11010

LOCK WASHER,M10

1шт.

22

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

23

440567A1

CABLE TIE

3шт.

24

392227A1

HARNESS

Differential Lock

1шт.

25

435437A1

CABLE TIE,3/16" x 7 1/4"

(184 mm)

2шт.

26

245483C1

ELEC CONNECTOR,Male, 2 Pin

Without Field Lights

4шт.

27

225127C1

PLUG

8шт.

28

104812C3

GASKET,3.05mm Thk

1шт.

29

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

30

87314864

MULTIPOLE CONNECTOR,48 Pole

1шт.

Выбрано товаров: 30
