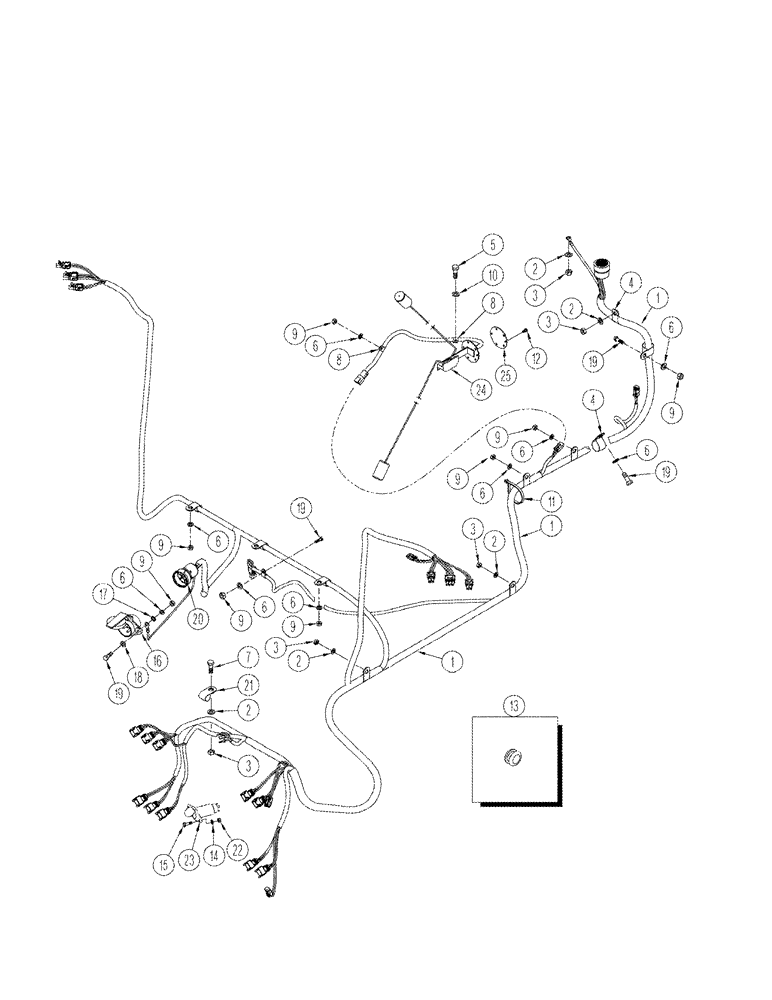

Запчасти Case IH STX275 (04-29) - HARNESS REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH (04) - ELECTRICAL SYSTEMS

1

390591A2

HARNESS

1шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

3шт.

5

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

10

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6 x 12 x 1.6 mm

1шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

12

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

5шт.

13

328265A1

GROMMET

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

16

121645C1

MULTIPOLE CONNECTOR,7 Pin

North American only

1шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

20

481849C1

PROTECTIVE COVER

1шт.

21

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

22

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

23

367322A1

CONNECTOR, ELEC

CONNECTOR remote, three-point hitch

1шт.

24

367960A2

SENDER UNIT

SENDER fuel level, Includes: Ref. 25

1шт.

25

104812C3

GASKET,3.05mm Thk

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
