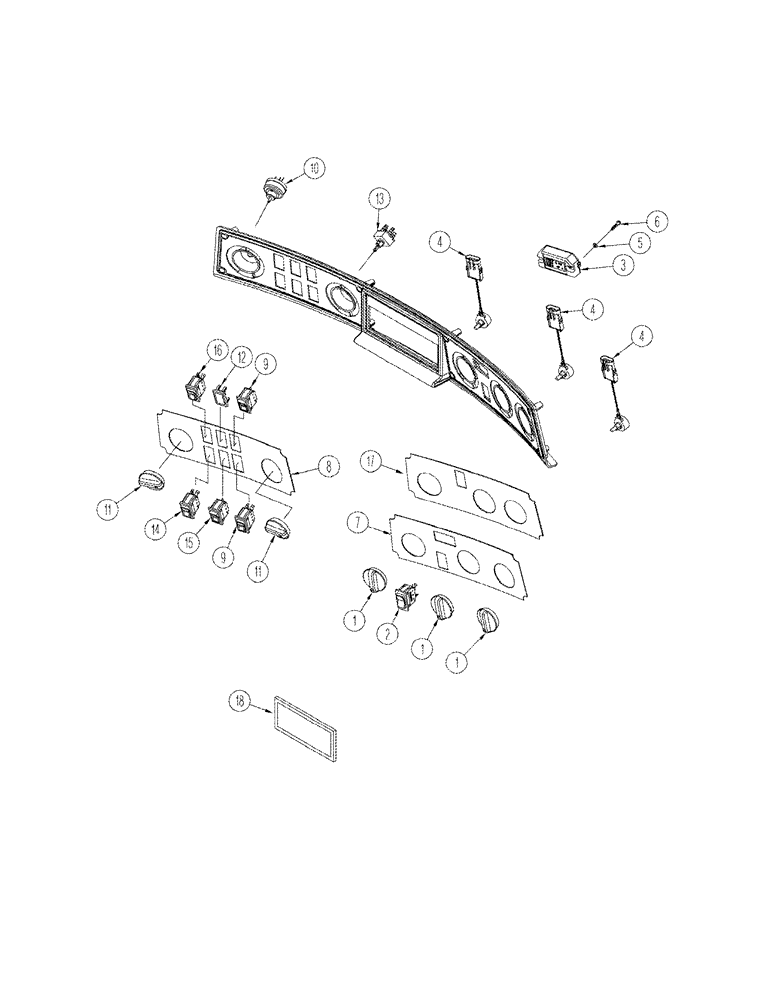

Запчасти Case IH STX275 (04-16) - CONTROL PANEL COMPONENTS (04) - ELECTRICAL SYSTEMS

1

1331046C2

KNOB

Automatic temperature control, Deluxe cab, Luxury cab

3шт.

2

295011A1

SWITCH

1шт.

3

308910A2

DISPLAY

automatic temperature control, deluxe cab, luxury cab

1шт.

4

326282A1

POTENTIOMETER,10,000 Ohm

3шт.

5

495-21019

WASHER,#8

2шт.

6

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

2шт.

7

308647A4

DECAL

automatic temperature control, deluxe cab, luxury cab, see Figure 09-56

1шт.

8

308645A3

DECAL

light panel, see Figure 09-56

1шт.

9

356885A1

SWITCH

rear wiper, lower front wiper

1шт.

10

177250A1

LIGHT SWITCH

Rotary

1шт.

11

1331046C2

KNOB

2шт.

12

86000535

PLUG,1.427" x .62", Plastic

3шт.

13

345262A1

WINDSHIELD WASHER SW

wiper

1шт.

14

229372A1

LIGHT SWITCH

road lamp

1шт.

15

330116A1

SWITCH

auxiliary, implement

1шт.

16

229379A1

SWITCH

strobe

1шт.

17

308646A4

DECAL

climate control, standard cab, see Figure 09-56

1шт.

18

1535219C1

COVER

without radio

1шт.
