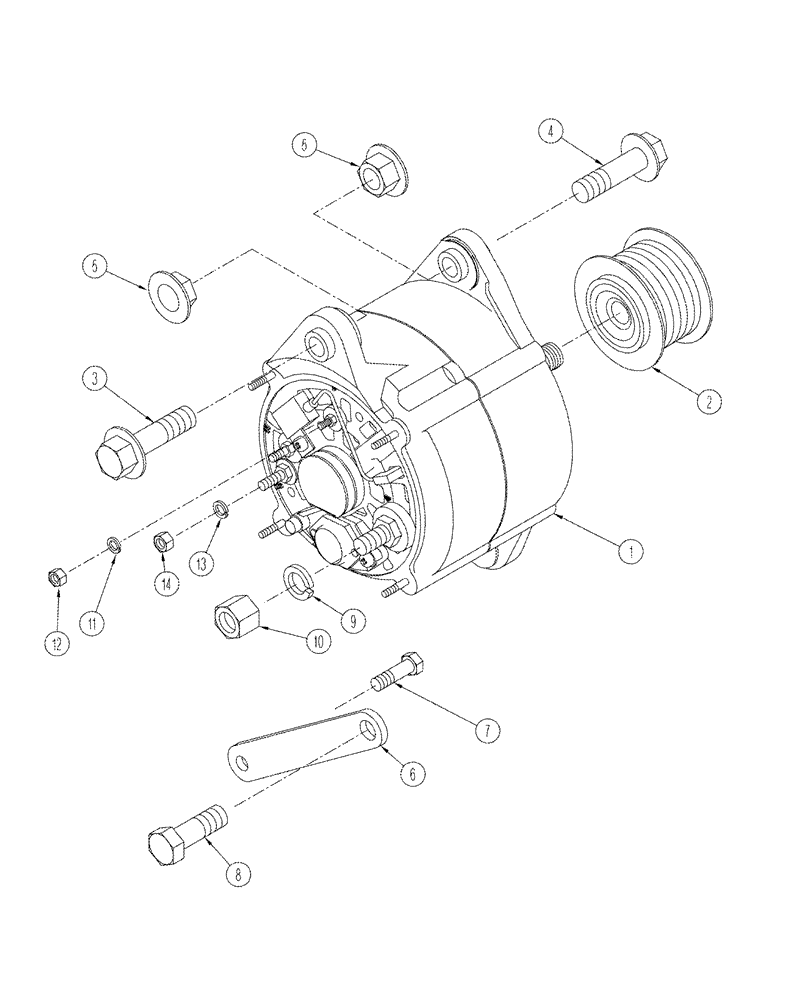

Запчасти Case IH STX275 (04-06) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp, see Figure 04-07

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87601413

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87601410

CORE-ALTERNATOR

Return Part Number

1шт.

1

125849A1GV

ALTERNATOR

Value, 135 Amp

1шт.

2

J926858

PULLEY

1шт.

3

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

4

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

5

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

6

314757A1

SUPPORT

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

9

492-11044

LOCK WASHER,7/16"

1шт.

10

425-147

JAM NUT,Jam, 7/16"-14, G5

1шт.

11

892-11004

LOCK WASHER,M4

1шт.

12

825-1404

NUT,M4, Cl 8

1шт.

13

892-11005

LOCK WASHER,M5

1шт.

14

824-1405

NUT,M5, Cl 5

1шт.
